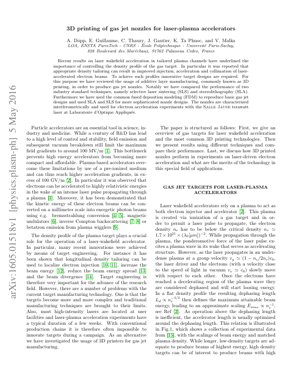

This paper investigates the application of additive manufacturing (3D printing) for fabricating gas jet nozzles used in laser-plasma accelerators (LPAs). Traditional manufacturing limits complex target design and rapid iteration. The study compares three industry-standard 3D printing techniques—Fused Deposition Modeling (FDM), Stereolithography (SLA), and Selective Laser Sintering (SLS)—for producing nozzles that generate tailored plasma density profiles, crucial for optimizing electron injection, acceleration, and beam quality in Laser Wakefield Acceleration (LWFA).
LWFA relies on a plasma medium where an intense laser pulse excites a wakefield that accelerates electrons. The performance is highly sensitive to the initial gas density profile before ionization.
The electron density $n_e$ must be below the critical density $n_c \simeq 1.7 \times 10^{21} \times (\lambda_0[\mu m])^{-2}$ for laser propagation. Key limitations like dephasing, where electrons outrun the accelerating phase of the wakefield, scale with density. The dephasing length $L_d \propto n_e^{-3/2}$ and maximum energy $E_{max} \propto n_e^{-1}$ underscore the need for precise density control.
Longitudinal density tailoring can localize injection, increase beam energy, reduce energy spread, and control divergence. Conventional machining struggles with the complexity and rapid turnaround required at user facilities, creating a bottleneck for innovation.
Used for reproducing basic nozzle designs. Cost-effective and accessible but typically offers lower resolution and surface finish compared to powder- or resin-based methods.
Uses a UV laser to cure liquid photopolymer resin layer by layer. Excels in producing high-resolution parts with smooth surface finishes, suitable for complex internal geometries of sophisticated nozzles.
Uses a laser to sinter powdered material (often nylon or polyamide). Creates durable parts with good mechanical properties and complex geometries without support structures, ideal for functional prototypes.
Basic designs were reproduced via FDM. More sophisticated nozzles with tailored orifice shapes for specific density profiles (e.g., ramps, shocks) were fabricated using SLA and SLS.
The resulting gas density profiles from the printed nozzles were characterized using interferometry, mapping the $n_e$ distribution before laser interaction.
Nozzles were tested in electron acceleration experiments using the 'Salle Jaune' terawatt laser at the Laboratoire d'Optique Appliquée (LOA). Key metrics included electron beam energy, charge, spectrum, and divergence.
SLA < FDM
SLA produced smoother internal channels critical for laminar flow.
SLS ≈ SLA > FDM
Powder-based SLS and high-res SLA better maintained design specs.
High for SLA/SLS
Complex profiles (e.g., sharp density gradients) were realized.
SLA nozzles exhibited the best surface finish, minimizing turbulence. SLS provided robust, accurate parts. FDM was sufficient for basic profiles but lacked fidelity for advanced tailoring.
Interferometry confirmed that SLA and SLS nozzles could produce designed density profiles (e.g., linear ramps, shock-like fronts) with high fidelity, enabling precise plasma shaping.
Experiments showed that nozzles producing tailored density profiles led to measurable improvements: more stable electron injection, higher peak energies, and reduced divergence compared to simple supersonic nozzles.
The core physics involves the laser propagation and wakefield excitation. The plasma wave is excited by the laser ponderomotive force $\mathbf{F}_p = - \frac{e^2}{4 m_e \omega_0^2} \nabla |\mathbf{E}|^2$. The phase velocity of the wakefield is approximately the laser group velocity: $v_\phi \simeq v_g \simeq c \sqrt{1 - n_e / n_c}$. Dephasing occurs over length $L_d \simeq \frac{2}{\pi} \frac{n_c}{n_e} \lambda_p$, where $\lambda_p = 2\pi c / \omega_p$ is the plasma wavelength and $\omega_p = \sqrt{n_e e^2 / (\epsilon_0 m_e)}$ is the plasma frequency. This directly links the optimal acceleration length and achievable energy to the designed density $n_e(x)$ from the nozzle.
Case: Designing a Nozzle for Density Down-Ramp Injection. A common technique for improving beam quality uses a sharp density decrease to trigger injection. The design workflow is:
This framework transforms a theoretical plasma physics concept into a functional, tested component with unprecedented speed.
This paper isn't just about making nozzles cheaper; it's a strategic pivot from component fabrication to function-on-demand engineering. The authors correctly identify that the major bottleneck in advancing Laser Wakefield Acceleration (LWFA) isn't laser power, but the ability to rapidly iterate and test complex plasma density structures. 3D printing, specifically high-resolution SLA and SLS, dismantles this bottleneck by collapsing the design-fabricate-test cycle from months to days. This is analogous to the revolution sparked by NVIDIA GPUs in deep learning—they didn't invent new algorithms but provided the hardware to test them at unprecedented speeds. Similarly, 3D printing provides the "hardware" for rapid plasma target prototyping.
The logic is compelling and follows a clear engineering problem-solution arc: (1) LWFA performance is exquisitely sensitive to plasma density profile $n_e(z)$. (2) Traditional machining is too slow and inflexible to explore this vast design space. (3) Therefore, adopt additive manufacturing. (4) Benchmark key technologies (FDM, SLA, SLS) against application-specific metrics (surface finish, accuracy, profile fidelity). (5) Validate with real interferometry and electron beam data. The flow from physics need to technology selection to experimental validation is airtight. It mirrors the approach seen in pioneering works that bridge disciplines, like the CycleGAN paper which framed image translation as a min-max game, creating a clear framework for a previously messy problem.
Strengths: The comparative approach is the paper's greatest asset. By not just promoting 3D printing but dissecting which type works for which task (FDM for basics, SLA/SLS for advanced), it provides an immediate decision matrix for other labs. The use of interferometric characterization provides objective, quantitative data, moving beyond mere "proof-of-concept." Linking nozzle output directly to electron beam metrics closes the loop convincingly.
Flaws & Missed Opportunities: The analysis is somewhat static. It compares technologies as they were used, but doesn't fully explore the dynamic potential. For instance, how does material choice (beyond standard polymers) affect performance under high-repetition-rate laser shots? Could printed nozzles integrate cooling channels? Furthermore, while they mention rapid iteration, they don't quantify the acceleration in the research cycle—hard data on time/cost savings would be powerful for convincing funding bodies. The work, as cited by institutions like Lawrence Livermore National Lab in their advanced manufacturing initiatives, points to a future where these components are not just prototypes but qualified, reliable parts. This paper lays the groundwork but stops short of a full reliability and lifetime analysis, which is the next critical step for real-world adoption.
For research groups: Immediately adopt SLA for next-generation nozzle prototyping. The surface quality is worth the investment over FDM. Start with replicating proven designs (e.g., dephasing control nozzles), then move to custom gradients. Partner with a local maker space or university lab with high-res printers if in-house isn't feasible.
For technology developers: The market for specialized, research-grade components is niche but high-value. Develop printer materials with higher laser-damage thresholds and thermal conductivity. Software that directly converts plasma simulation output (e.g., from particle-in-cell codes) into printable CAD with printability checks would be a killer app.
For the field: This work should catalyze the creation of an open-source repository of 3D-printable LPA component designs (nozzles, capillary holders, etc.). Standardizing and sharing these "recipes," much like the open-source model in AI (e.g., Hugging Face models), would dramatically lower the entry barrier and accelerate progress across all labs, democratizing access to state-of-the-art targetry.
In conclusion, Döpp et al. have provided a masterclass in applied engineering for fundamental science. They've taken a mature industrial technology and repurposed it to solve a critical pain point in cutting-edge physics. The real impact won't be the specific nozzles printed, but the paradigm shift they enable: from slow, costly iteration to agile, physics-driven design. This is how compact accelerator technology will move from the lab to the clinic and the factory floor.
