Comparative Analysis of Additive Manufacturing Methods for Isotropic NdFeB Magnets

Table of Contents

1.1 Introduction & Overview

This paper presents a pioneering comparative study on the additive manufacturing (AM) of isotropic NdFeB permanent magnets using three distinct technologies: Stereolithography (SLA), Fused Filament Fabrication (FFF), and Selective Laser Sintering (SLS). The research marks the first successful application of a vat photopolymerization technique (SLA) for 3D printing hard magnetic materials. The core objective is to evaluate and contrast the capabilities of these AM methods in processing the same magnetic powder feedstock, focusing on achievable magnetic properties, geometric freedom, surface quality, and suitability for functional applications like magnetic sensing.

2. Additive Manufacturing Methods

All three methods utilize the same isotropic NdFeB powder as the magnetic phase, differing fundamentally in the binding or consolidation mechanism.

2.1 Fused Filament Fabrication (FFF)

FFF employs a thermoplastic filament loaded with magnetic powder. The filament is heated, extruded through a nozzle, and deposited layer-by-layer. It produces polymer-bonded magnets, where the plastic matrix (binder) dilutes the magnetic volume fraction, inherently limiting the maximum energy product $(BH)_{max}$. Advantages include wide accessibility and low machine cost.

2.2 Selective Laser Sintering (SLS)

SLS is a powder bed fusion process where a laser selectively sinters (fuses) NdFeB powder particles without a separate binder. It aims to retain the powder's original microstructure. A post-process grain boundary infiltration step can be used to enhance coercivity significantly. This method seeks a middle ground between full density and microstructure preservation.

2.3 Stereolithography (SLA)

This study's standout contribution is the adaptation of SLA for hard magnets. A photosensitive resin is mixed with NdFeB powder to form a slurry. A UV laser selectively cures the resin, binding the powder particles within each layer. This process enables the creation of complex geometries with excellent surface finish and fine feature resolution, which are challenging for FFF and SLS.

3. Experimental Results & Analysis

3.1 Magnetic Properties Comparison

The magnetic performance was characterized by measuring remanence (Br) and coercivity (Hcj).

• SLA: Achieved the highest reported remanence of 388 mT and a coercivity of 0.923 T among the polymer-bound methods in this study.
• FFF: Produces functional magnets but with lower Br and Hcj due to higher polymer content and possible porosity from the extrusion process.
• SLS: Magnetic properties are highly dependent on laser parameters. Sintering can improve density but may alter microstructure, affecting coercivity. Post-infiltration is key to boosting Hcj.

The results underscore a critical trade-off: SLA offers the best combination of geometry and properties for polymer-bound routes, while SLS offers a path toward higher density.

3.2 Microstructure & Surface Quality

SLA-produced magnets demonstrated superior surface quality and the ability to realize small feature sizes, a direct benefit of the fine laser spot size and layer-by-layer curing process. This is visually represented in the paper's figures comparing the surface morphology of samples from each technique. FFF parts typically show layer lines, and SLS parts have a characteristic grainy, porous surface from partially fused powder.

3.3 Application Case: Speed Wheel Sensor

The study designed and printed a complex magnetic structure for a speed wheel sensing application using all three methods. This practical demonstration highlighted SLA's advantage in producing parts with the precise, intricate magnetic pole patterns required for accurate sensing, which are difficult to achieve via molding or machining.

4. Technical Details & Mathematical Models

The performance of a permanent magnet is fundamentally governed by its hysteresis loop and the maximum energy product, a key figure of merit calculated from the second quadrant of the B-H curve:

$(BH)_{max} = max(-B \cdot H)$

For polymer-bonded magnets (FFF, SLA), $(BH)_{max}$ is reduced proportionally to the volume fraction of the non-magnetic binder $v_b$: $B_r \approx v_m \cdot B_{r, powder} \cdot (1 - \text{porosity})$, where $v_m$ is the magnetic volume fraction. Achieving high $v_m$ in SLA slurry or FFF filament is a critical materials challenge.

For SLS, the density $\rho$ relative to theoretical density plays a major role: $B_r \propto \rho$. The laser sintering process must balance input energy $E$ (a function of laser power $P$, scan speed $v$, and hatch spacing $h$) to achieve fusion without excessive thermal degradation of the magnetic phase: $E = P / (v \cdot h)$.

5. Analysis Framework & Case Study

Framework for Selecting an AM Method for Magnetic Components:

1. Define Requirements: Quantify needed Br, Hcj, $(BH)_{max}$, geometric complexity (minimum feature size, overhangs), surface roughness (Ra), and production volume.
2. Process Screening:
   • Ultimate Property Need: For near-theoretical density, directed energy deposition (DED) or binder jetting with sintering are future contenders, not yet mature.
   • Complexity + Good Properties: Choose SLA for prototypes and complex, low-volume sensor parts.
   • Moderate Complexity + Low Cost: Choose FFF for functional prototyping and proof-of-concept models where properties are secondary.
   • Simpler Shapes + Higher Density Potential: Explore SLS with post-processing, but be prepared for R&D into parameter optimization.
3. Case Study - Miniature Magnetic Gear:
   • Requirement: 5mm diameter gear with 0.2mm tooth spacing, Br > 300 mT.
   • FFF: Likely fails due to nozzle clogging and poor resolution for 0.2mm features.
   • SLS: Challenging to achieve fine detail and smooth surfaces on teeth; powder removal from gaps is difficult.
   • SLA: Optimal choice. Can achieve the resolution, and the slurry-based process allows intricate shapes. The study's reported Br of 388 mT meets the requirement.

6. Future Applications & Research Directions

• Graded & Multi-Material Magnets: SLA and inkjet-based AM could enable magnets with spatially varying magnetic orientation or composition, useful for advanced motors and magnetic circuits. Research in multi-material vat photopolymerization, akin to advancements in multi-material bioprinting, is relevant here.
• Integrated Magnetic-Electronic Devices: Embedding 3D-printed magnets within sensors or actuators during printing, creating monolithic functional devices.
• High-Temperature Magnets: Developing photopolymer resins or sintering protocols for Sm-Co or Ce-based magnets for automotive and aerospace applications.
• Machine Learning for Process Optimization: Using AI models to predict optimal laser parameters (for SLS) or curing parameters (for SLA) to maximize density and magnetic properties while minimizing defects, similar to approaches used in optimizing metal AM processes documented in databases like NASA's AMS.
• Magnetic Micro-robots: Utilizing SLA's high resolution to 3D print magnetic components for biomedical micro-robots, a field rapidly growing as seen in research from institutes like ETH Zurich's Multi-Scale Robotics Lab.

7. References

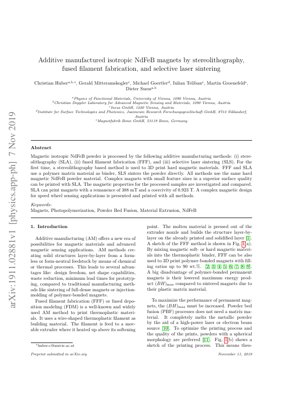

1. Huber, C., et al. "Additive manufactured isotropic NdFeB magnets by stereolithography, fused filament fabrication, and selective laser sintering." arXiv preprint arXiv:1911.02881 (2019).
2. Li, L., et al. "Big Area Additive Manufacturing of high performance bonded NdFeB magnets." Scientific Reports 6 (2016): 36212.
3. Jacimovic, J., et al. "Net shape 3D printed NdFeB permanent magnet." Advanced Engineering Materials 19.8 (2017): 1700098.
4. Goll, D., et al. "Additive manufacturing of soft and hard magnetic materials." Procedia CIRP 94 (2020): 248-253.
5. NASA Materials and Processes Technical Information System (MAPTIS) - Additive Manufacturing Standards.
6. Zhu, J., et al. "Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks." Proceedings of the IEEE International Conference on Computer Vision (ICCV), 2017. (CycleGAN reference for style transfer concepts relevant to microstructure prediction).

8. Original Analysis & Expert Commentary

Core Insight: This paper isn't just a process comparison; it's a strategic map revealing that the future of functional magnetic AM lies not in displacing sintering, but in conquering the design space where complexity and moderate performance intersect. SLA's successful debut here is the sleeper hit, proving that high-resolution vat photopolymerization can unlock magnetic geometries previously confined to simulation. The real headline is that design freedom is now the primary driver for magnetic component innovation, not just incremental property gains.

Logical Flow: The authors brilliantly structure the narrative around a binding mechanism continuum: from full polymer matrix (FFF) to partial sintering (SLS) to photopolymer binder (SLA). This framing makes the trade-offs visceral. FFF is the accessible workhorse, SLS the promising but finicky contender for higher density, and SLA emerges as the precision artist. The logical crescendo is the speed wheel sensor demo—it transitions from laboratory metrics to a tangible, commercially relevant outcome, proving that these aren't just scientific curiosities but viable manufacturing pathways.

Strengths & Flaws: The study's monumental strength is its holistic, apples-to-apples comparison using the same powder—a rarity that provides genuine insight. Introducing SLA to the magnetic AM toolkit is a genuine contribution. However, the analysis has blind spots. It glosses over the elephant in the room: the abysmal $(BH)_{max}$ of all polymer-bound methods compared to sintered magnets. A bar chart comparing their 30-40 kJ/m³ to sintered NdFeB's 400+ kJ/m³ would be a sobering reality check. Furthermore, the long-term stability of UV-cured polymers under thermal and magnetic field cycling—a critical concern for real applications—is unaddressed. The SLS process also seems underexplored; parameter optimization for magnetic materials is non-trivial, as evidenced by the extensive literature on SLM for metals, and deserves deeper scrutiny than presented.

Actionable Insights: For R&D managers, the message is clear: invest in SLA for prototyping complex sensor and actuator components now. The technology is mature enough. For materials scientists, the next breakthrough is in developing high-temperature, radiation-resistant resins to expand SLA's operational envelope. For process engineers, the low-hanging fruit is in hybrid approaches: using SLA or FFF to create a "green" part followed by debinding and sintering, akin to metal binder jetting. This could bridge the property gap. Finally, this work should catalyze simulation efforts. Just as generative design software revolutionized lightweight structures, we now need topology optimization tools that co-design the part's shape and its internal magnetic flux path, outputting a model ready for SLA. The toolchain, not just the printer, is what will ultimately democratize magnetic design.
