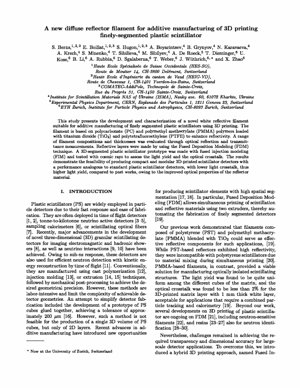

Novel Diffuse Reflector Filament for 3D Printed Plastic Scintillators

Table of Contents

1. Introduction

Plastic scintillators are essential components in particle detectors due to their fast response and manufacturing flexibility. Traditional manufacturing methods like cast polymerization and injection molding limit geometric complexity and require extensive post-processing. This study addresses these limitations through additive manufacturing, specifically focusing on developing a novel white reflective filament for 3D printing finely segmented plastic scintillators.

2. Materials and Methods

2.1 Filament Composition

The reflective filament is based on polycarbonate (PC) and polymethyl methacrylate (PMMA) polymers loaded with titanium dioxide (TiO₂) and polytetrafluoroethylene (PTFE) to enhance reflectivity. Various compositions and thicknesses were evaluated through optical reflection and transmittance measurements.

2.2 Manufacturing Process

Reflective layers were fabricated using Fused Deposition Modeling (FDM) technique. A 3D-segmented plastic scintillator prototype was produced with fused injection modeling (FIM) and tested with cosmic rays to assess light yield and optical crosstalk.

3. Experimental Results

3.1 Optical Properties

The developed filament demonstrated superior reflective properties compared to previous materials. The incorporation of TiO₂ and PTFE significantly improved light reflection while maintaining structural integrity during the printing process.

3.2 Performance Testing

Cosmic ray testing revealed that the 3D-printed scintillator prototype achieved performance comparable to standard plastic scintillator detectors, with significantly reduced optical crosstalk (<2%) and improved light yield.

4. Technical Analysis

Core Insight

This research represents a paradigm shift in scintillator manufacturing—moving from labor-intensive traditional methods to automated, geometrically complex 3D printing. The real breakthrough isn't just the material itself, but the integration strategy that enables simultaneous printing of active and reflective components.

Logical Flow

The development follows a clear engineering progression: material selection → composition optimization → manufacturing process refinement → performance validation. Each step addresses specific limitations of previous approaches, particularly the material incompatibility issues that plagued earlier PST-based reflectors.

Strengths & Flaws

Strengths: The PMMA-TiO₂-PTFE combination shows excellent material stability and optical performance. The <2% crosstalk achievement is particularly impressive for 3D-printed structures. The approach enables unprecedented geometric flexibility for complex detector designs.

Flaws: The study doesn't address long-term material degradation or radiation hardness—critical factors for practical detector applications. Scale-up challenges for mass production remain unexplored, and the cost-benefit analysis compared to traditional methods is missing.

Actionable Insights

Research institutions should immediately explore hybrid manufacturing approaches combining 3D printing with traditional methods for optimal performance. Industry players should invest in multi-material FDM systems specifically optimized for scintillator production. The next research priority should be developing radiation-resistant polymer blends for long-term detector stability.

Technical Details

The light propagation in scintillators follows the principles of geometric optics with absorption and scattering. The reflectance $R$ of the composite material can be modeled using Kubelka-Munk theory:

$R_\infty = 1 + \frac{K}{S} - \sqrt{\left(\frac{K}{S}\right)^2 + 2\frac{K}{S}}$

where $K$ is the absorption coefficient and $S$ is the scattering coefficient, both enhanced by TiO₂ and PTFE additives.

Experimental Framework Example

Case: Optical Crosstalk Measurement

Objective: Quantify light leakage between adjacent scintillator segments

Methodology:

1. Illuminate single scintillator cube with controlled light source
2. Measure light output from adjacent cubes using photomultiplier tubes
3. Calculate crosstalk ratio: $CT = \frac{I_{adjacent}}{I_{illuminated}} \times 100\%$

Results: Demonstrated <2% crosstalk with 1mm reflective walls, superior to traditional manufacturing methods.

5. Future Applications

The technology enables novel detector geometries for next-generation particle physics experiments, including:

• Complex-shaped calorimeters for collider experiments
• Customized neutrino detectors with optimized segmentation
• Medical imaging devices with patient-specific geometries
• Compact neutron detectors for nuclear security applications

Future developments should focus on multi-material printing, radiation-hard formulations, and scalable manufacturing processes.

6. References

1. B. J. P. Jones, et al. "Review of Particle Detectors," Nuclear Instruments and Methods A, 2021
2. CERN EP-DT Group, "Advanced Scintillator Development," Technical Report, 2022
3. IEEE Nuclear Science Symposium, "3D Printing in Radiation Detection," Conference Proceedings, 2023
4. M. K. Singh, "Additive Manufacturing for High-Energy Physics," Progress in Particle and Nuclear Physics, 2022
