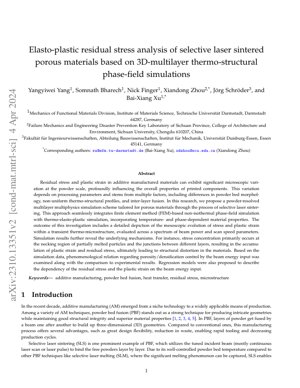

PDF Document Cover - Elasto-Plastic Residual Stress Analysis in SLS Porous Materials via 3D Multilayer Phase-Field Simulations

1. Introduction

Additive Manufacturing (AM), particularly Powder Bed Fusion (PBF) techniques like Selective Laser Sintering (SLS), has transitioned from a prototyping tool to a viable production method for complex, high-value components. A critical challenge in SLS of porous materials, such as those used for biomedical scaffolds or functional graded structures, is the development of residual stresses and plastic strains at the powder scale. These mesoscopic heterogeneities, arising from localized heating, rapid solidification, and inter-layer fusion, significantly influence the final part's mechanical integrity, dimensional accuracy, and long-term performance. This work presents a novel 3D multilayer multiphysics simulation scheme that integrates non-isothermal phase-field modeling with thermo-elasto-plastic analysis to predict and analyze these phenomena in unprecedented detail.

2. Methodology

The proposed framework is a tightly coupled multiphysics approach designed to capture the complex interactions during SLS.

2.1. Simulation Framework Overview

The scheme sequentially couples a Finite Element Method (FEM)-based non-isothermal phase-field simulation for microstructure evolution with a subsequent thermo-elasto-plastic stress analysis. The output (temperature field, phase distribution) from the first stage serves as the input and driving force for the second. This allows for modeling temperature- and phase-dependent material properties realistically.

2.2. Phase-Field Model for Microstructure Evolution

A multi-order parameter phase-field model tracks the solid-liquid interface and the coalescence of powder particles under the moving laser heat source. The evolution is governed by the Ginzburg-Landau-type equations, considering thermal gradients and capillary forces.

2.3. Thermo-Elasto-Plastic Constitutive Model

The stress analysis employs a J2 plasticity model with isotropic hardening. The material behavior is defined by temperature-dependent Young's modulus $E(T)$, yield strength $\sigma_y(T)$, and thermal expansion coefficient $\alpha(T)$. The total strain rate $\dot{\epsilon}$ is decomposed into elastic, plastic, and thermal components: $\dot{\epsilon} = \dot{\epsilon}^{e} + \dot{\epsilon}^{p} + \dot{\epsilon}^{th}$.

3. Results and Discussion

3.1. Microstructural Evolution and Porosity

Simulations reveal how beam power and scan speed control the neck growth between particles, directly dictating final porosity. A phenomenological relation between volumetric energy density ($E_v = P/(v \cdot d \cdot h)$, where $P$ is power, $v$ is speed, $d$ is spot diameter, $h$ is hatch spacing) and relative density was established, showing a trend of increased densification with higher $E_v$, consistent with experimental observations in literature.

3.2. Residual Stress and Plastic Strain Distribution

The core finding is the identification of critical stress concentrators: (1) the necking regions of partially melted particles, and (2) the junctions between successively deposited layers. These regions act as hotspots for plastic strain accumulation. The residual stress field is highly heterogeneous, with tensile stresses often found in the core of sintered necks and compressive stresses in surrounding cooler regions.

Chart Description (Simulated): A 3D contour plot would show a porous lattice structure. The particle necks and inter-layer boundaries are highlighted in red/orange, indicating high von Mises stress or plastic strain magnitude. The interior of large pores and the substrate interface would appear in blue/green, indicating lower stress levels. Cross-sectional slices would show the stress gradient from the heated top layer to the cooler bottom.

3.3. Effect of Process Parameters

Higher beam power at constant speed increases melt pool size and thermal gradients, leading to higher peak temperatures and more severe residual stresses. Conversely, very high scan speeds can lead to insufficient melting and poor bonding, but also reduce thermal cycling and may lower residual stress. The study proposes regression models linking $E_v$ to the volume-averaged residual stress and plastic strain, providing a quantitative process-structure-property relationship.

4. Key Insights and Analysis

Core Insight

This paper delivers a crucial, often-overlooked truth: in porous SLS, the primary driver of failure isn't the bulk material, but the micro-architecture. The simulation brilliantly visualizes how stress and plasticity are not uniformly distributed but are strategically (and problematically) concentrated at the very features that define porosity—the inter-particle necks and layer interfaces. This turns the conventional "dense material" stress analysis on its head.

Logical Flow

The authors' logic is robust: 1) Model the heat source and track phase change (Phase-Field). 2) Use that thermal history to drive mechanical deformation (FEM). 3) Identify where plasticity initiates and locks in as residual stress. 4) Correlate these mesoscopic findings with macroscopic process inputs (Power, Speed). It's a classic multiscale linkage, executed with high fidelity for the SLS porosity problem.

Strengths & Flaws

Strengths: The coupled phase-field-mechanics approach is state-of-the-art and perfectly suited for the problem. Identifying necking zones as stress concentrators is a significant, actionable finding. The attempt to create regression models for process control is highly practical.

Flaws: The elephant in the room is the material model's simplicity. Using a standard J2 plasticity model ignores the complex, path-dependent behavior of semi-sintered powder, which may involve creep and time-dependent relaxation during the process itself. Furthermore, while the framework is impressive, its computational cost likely limits it to small representative volume elements, not full part-scale prediction—a gap that machine learning surrogates, inspired by works like those on CycleGAN for style transfer in image-based simulations, could eventually fill.

Actionable Insights

For process engineers: Focus on inter-layer and inter-particle junctions. Post-process treatments (e.g., thermal annealing) must be designed to target these specific, confined high-stress zones, not just the whole part. For designers: The simulation provides a map to avoid critical stress geometries. When designing lattice structures, one might deliberately alter node geometries or layer staggering based on these stress maps. The regression models offer a first-pass tool for parameter selection to minimize residual stress for a target porosity.

5. Technical Details

The phase-field evolution for an order parameter $\phi$ representing the solid phase is given by the Allen-Cahn equation: $$\frac{\partial \phi}{\partial t} = -L \frac{\delta F}{\delta \phi}$$ where $L$ is the kinetic coefficient and $F$ is the total free energy functional incorporating gradient energy, double-well potential, and latent heat. The thermo-elasto-plastic analysis solves the equilibrium equation: $$\nabla \cdot \boldsymbol{\sigma} + \mathbf{b} = 0$$ with $\boldsymbol{\sigma}$ as the Cauchy stress tensor and $\mathbf{b}$ as body forces. The plastic flow follows the associative rule $\dot{\epsilon}^{p} = \dot{\lambda} \frac{\partial f}{\partial \sigma}$, where $f$ is the yield function $f = \sigma_{eq} - \sigma_y(T, \epsilon^{p}) \le 0$.

6. Experimental Correlation and Validation

The study compares simulation-predicted porosity vs. energy density trends with experimental data from SLS of polymer or metal powder systems (literature-based). The general agreement validates the model's ability to capture densification mechanics. Quantitative validation of the predicted residual stress fields would typically require synchrotron X-ray diffraction or contour method measurements on specially built samples, which is suggested as necessary future work.

7. Analysis Framework: A Conceptual Case Study

Scenario: Optimizing the SLS process for a titanium spinal implant with a controlled porous surface for bone ingrowth.

Application of Framework:

  1. Define Objective: Achieve 50% porosity in the surface layer while keeping residual stress below a threshold to prevent fatigue crack initiation.
  2. Simulation Campaign: Run the 3D multilayer model for a matrix of parameters (Power: 100-200W, Speed: 0.5-2.0 m/s) on a representative unit cell of the porous geometry.
  3. Data Extraction: For each run, extract average porosity, maximum von Mises stress in neck regions, and volume-averaged plastic strain.
  4. Build Surrogate Model: Use the simulation data to train a simple response surface model (e.g., a Gaussian Process regressor) that instantly predicts stress and porosity for any (P, v) input.
  5. Multi-Objective Optimization: Use the surrogate model in an optimization loop (e.g., using a genetic algorithm) to find the (P, v) pair that meets the 50% porosity target and minimizes maximum stress.
  6. Verification: Run the full high-fidelity simulation once more at the optimal parameters to verify the result before physical trials.
This virtual design-of-experiments drastically reduces the costly trial-and-error in actual manufacturing.

8. Future Applications and Directions

  • Material Discovery: The framework can screen novel powder materials (e.g., high-entropy alloys, ceramics) for their SLS processability and inherent residual stress propensity.
  • Digital Twins for AM: Integrating this model into a real-time monitoring and control system could allow for dynamic parameter adjustment layer-by-layer to mitigate stress, moving towards a closed-loop, intelligent AM process.
  • Design for Additive Manufacturing (DfAM): The insights can be codified into generative design algorithms that create lattice structures which inherently avoid high-stress neck geometries, leading to more durable and reliable porous components.
  • Multi-Material and Functionally Graded Structures: Extending the model to multiple powder materials will be critical for simulating the even more complex residual stress states in multi-material SLS, essential for advanced applications in aerospace and electronics.

9. References

  1. Mercelis, P., & Kruth, J. P. (2006). Residual stresses in selective laser sintering and selective laser melting. Rapid Prototyping Journal.
  2. Zhu, Y., et al. (2022). Phase-field modeling of microstructure evolution in additive manufacturing: A review. Acta Materialia.
  3. King, W. E., et al. (2015). Laser powder bed fusion additive manufacturing of metals; physics, computational, and materials challenges. Applied Physics Reviews.
  4. Isola, P., Zhu, J., Zhou, T., & Efros, A. A. (2017). Image-to-image translation with conditional adversarial networks. Proceedings of the IEEE conference on computer vision and pattern recognition (CVPR). (CycleGAN reference for style-transfer concept in simulation).
  5. National Institute of Standards and Technology (NIST). (2023). Measurement Science for Additive Manufacturing. https://www.nist.gov/programs-projects/measurement-science-additive-manufacturing.
  6. Yadroitsev, I., & Smurov, I. (2010). Selective laser melting technology: from the single laser melted track stability to 3D parts of complex shape. Physics Procedia.
