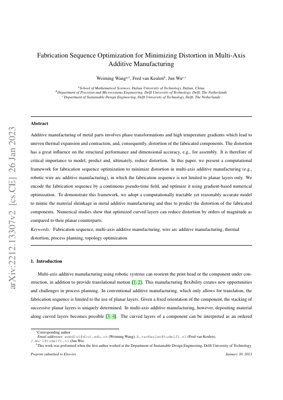

PDF Document Cover - Fabrication Sequence Optimization for Minimizing Distortion in Multi-Axis Additive Manufacturing

Table of Contents

1. Introduction

Multi-axis additive manufacturing (AM), such as robotic Wire Arc Additive Manufacturing (WAAM), introduces manufacturing flexibility by allowing reorientation of the print head or component. This flexibility moves beyond the constraints of planar layer deposition, enabling the use of curved layers. However, metal AM involves significant thermal gradients and phase transformations, leading to uneven thermal expansion/contraction and resultant distortion. This distortion critically impacts structural performance and dimensional accuracy (e.g., for assembly). This paper presents a computational framework to optimize the fabrication sequence—represented as a continuous pseudo-time field—to minimize distortion in multi-axis AM using gradient-based optimization.

2. Methodology

2.1 Pseudo-Time Field Encoding

The fabrication sequence is encoded as a continuous scalar field $T(\mathbf{x})$, termed the pseudo-time field, defined over the component domain $\Omega$. Each point $\mathbf{x} \in \Omega$ is assigned a pseudo-time value. The material deposition sequence follows the ascending order of $T(\mathbf{x})$: material at a point with a smaller $T$ is deposited before material at a point with a larger $T$. This continuous representation is differentiable, enabling the use of efficient gradient-based optimization algorithms to find the optimal sequence that minimizes an objective function (e.g., total distortion).

2.2 Distortion Modeling

A computationally tractable yet reasonably accurate thermomechanical model is adopted to predict distortion. The model mimics the inherent strain method, focusing on the dominant effect of material shrinkage upon cooling. The distortion $\mathbf{u}$ is computed by solving a linear elastic equilibrium problem with an eigenstrain $\boldsymbol{\varepsilon}^*$ representing the shrinkage:

\[ \nabla \cdot \boldsymbol{\sigma} = \mathbf{0} \quad \text{in } \Omega \]

\[ \boldsymbol{\sigma} = \mathbf{C} : (\boldsymbol{\varepsilon} - \boldsymbol{\varepsilon}^*) \]

\[ \boldsymbol{\varepsilon} = \frac{1}{2}(\nabla \mathbf{u} + (\nabla \mathbf{u})^T) \]

where $\boldsymbol{\sigma}$ is stress, $\mathbf{C}$ is elasticity tensor, and $\boldsymbol{\varepsilon}$ is strain. The eigenstrain $\boldsymbol{\varepsilon}^*$ is a function of the local temperature history, which is implicitly linked to the pseudo-time field $T(\mathbf{x})$.

2.3 Gradient-Based Optimization

The optimization problem is formulated as:

\[ \min_{T} \quad J = \frac{1}{2} \int_{\Omega} \| \mathbf{u}(T) \|^2 \, d\Omega \]

subject to constraints that $T$ defines a valid sequence. The gradient $\partial J / \partial T$ is computed using the adjoint method, allowing efficient search in the high-dimensional design space of the pseudo-time field.

3. Results & Discussion

3.1 Numerical Studies

The framework was applied to benchmark geometries, including a cantilever beam and a more complex bracket-like structure. The baseline case used conventional planar layer sequencing. The optimized pseudo-time field generated non-planar, curved deposition paths.

Key Result: Distortion Reduction

Optimized curved layers reduced distortion by orders of magnitude compared to planar layer sequencing. For the cantilever case, the maximum displacement was reduced from a baseline of ~10 mm to less than 1 mm.

3.2 Distortion Reduction

The results demonstrate that the sequence optimization effectively redistributes the order of material addition to balance the evolving internal stresses. The optimized curved layers often follow paths that align with principal stress directions during fabrication, mitigating the buildup of residual stress that leads to distortion.

4. Technical Analysis & Framework

4.1 Core Insight & Logical Flow

Core Insight: The paper's breakthrough isn't just about curved layers; it's about reframing process planning as a continuous field optimization problem. By encoding the build sequence into a differentiable pseudo-time field $T(\mathbf{x})$, they bridge the discrete, combinatorial nightmare of path planning with the smooth, efficient world of gradient-based calculus. This is analogous to how Level Set Methods revolutionized topology optimization by moving from discrete pixel updates to continuous boundary evolution. The real value is the gradient—it transforms an intractable search (comparing billions of sequences) into a solvable descent problem.

Logical Flow: The logic is elegantly direct: 1) Distortion stems from sequential thermal stress accumulation. 2) The sequence dictates stress history. 3) Therefore, control the sequence to control distortion. 4) To optimize sequence with gradients, represent it as a continuous field. 5) Use adjoint methods to compute how tiny changes in this field affect final distortion. 6) Let the optimizer find the field that minimizes distortion. The flow from physics (thermomechanics) to math (optimization) to application (curved toolpaths) is coherent and compelling.

4.2 Strengths & Flaws

Strengths:

  • Mathematical Elegance: The pseudo-time field is a clever, portable representation. It decouples the optimization formulation from the specific AM process, making the framework potentially applicable to other sequential processes like 4D printing or composite layup.
  • Computational Viability: Leveraging adjoint sensitivity analysis makes optimizing for a high-dimensional sequence field feasible, a significant step beyond heuristic or genetic algorithm approaches.
  • Substantial Results: "Orders of magnitude" reduction in distortion is a bold claim backed by their numerical evidence, directly addressing a critical industrial pain point.

Flaws & Critical Gaps:

  • Model Fidelity vs. Speed Trade-off: The adopted "computationally tractable" distortion model is likely a simplified inherent strain or thermo-elastic model. For complex alloys or large builds, such models can lack accuracy compared to high-fidelity thermo-metallurgical-mechanical simulations. The paper doesn't fully address this validation gap against experimental data or high-fidelity simulation, a common issue noted in reviews of AM process modeling.
  • The "Curved Layer" Manufacturing Hurdle: The paper brilliantly solves the planning problem but glosses over the execution problem. Generating smooth, collision-free, 5-axis toolpaths from an optimized pseudo-time field is non-trivial. Issues like nozzle accessibility, support structures for overhangs in curved layers, and dynamic control of WAAM parameters (heat input, wire feed) along a complex path are major practical barriers.
  • Scalability: While the adjoint method is efficient, solving the equilibrium equations for large-scale industrial components (like the 2-meter excavator arm mentioned) with sufficient mesh resolution for accurate stress prediction remains computationally expensive.

4.3 Actionable Insights

For Researchers: This is a foundational methodology paper. The immediate next step is to integrate higher-fidelity physics. Replace the simplified shrinkage model with a coupled thermo-metallurgical model, perhaps using a model order reduction technique to keep costs manageable. Furthermore, explore multi-objective optimization—simultaneously minimizing distortion, build time, and material waste.

For Software Developers (CAD/CAM/CAE): The pseudo-time field concept should be integrated into next-gen AM planning suites. Develop robust algorithms to convert the optimized $T(\mathbf{x})$ field into machine instructions, handling path smoothing, collision avoidance, and process parameter synchronization. This is the missing link to commercialization.

For Industry Practitioners (Aerospace, Maritime): Start pilot projects on non-critical, large-scale components where distortion is the primary concern. Focus on geometries where the benefit of distortion reduction outweighs the complexity of multi-axis programming. Collaborate with robotics integrators to tackle the path execution challenge. The ROI is clear: reduced post-processing (machining, straightening) and improved first-time-right yield.

For Equipment Manufacturers: Invest in open-architecture controllers that can accept complex, non-planar toolpaths. Develop in-situ distortion monitoring systems (e.g., laser scanning) to create a closed-loop system where the measured distortion can be used to update the pseudo-time field optimization in near-real-time, adapting to unpredictable process variations.

5. Future Applications & Directions

The framework has broad potential beyond WAAM distortion control:

  • Multi-Material & Functionally Graded AM: Optimize the deposition sequence for blending different materials to manage interfacial stresses and prevent delamination.
  • In-Situ Resource Utilization (ISRU) for Space Manufacturing: For building structures on the Moon or Mars with regolith, optimizing the fabrication sequence could be critical for managing thermal stresses in extreme environments with limited post-processing capability.
  • Integration with Topology Optimization: Co-optimize the component's shape (topology) and its fabrication sequence simultaneously—designing for both performance and manufacturability from the outset. This aligns with the "Design for Additive Manufacturing" (DfAM) philosophy promoted by institutions like America Makes.
  • 4D Printing & Active Structures: Sequence optimization could control the residual stress state to program specific shape-changing behaviors in smart materials upon activation.
