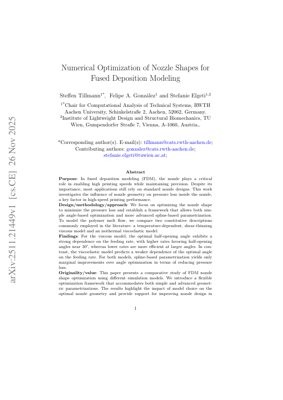

Numerical Optimization of Nozzle Shapes for Fused Deposition Modeling

Table of Contents

1. Introduction

Fused Deposition Modeling (FDM) is a dominant additive manufacturing technology, prized for its cost-effectiveness and material versatility. However, achieving high printing speeds without compromising precision remains a significant challenge, largely constrained by pressure losses within the extrusion nozzle. While process parameter optimization is common, the geometric design of the nozzle itself is often overlooked, with most systems relying on standard conical shapes. This work addresses this gap by presenting a numerical framework for optimizing nozzle geometry to minimize pressure loss, thereby enabling higher feasible printing speeds. The study critically compares two fundamental constitutive models for polymer melt flow: a temperature-dependent, shear-thinning viscous model and an isothermal viscoelastic model.

2. Methodology

2.1. Flow Modeling

The core of the analysis lies in simulating the non-Newtonian flow of the polymer melt. Two models are employed:

• Viscous Model: A generalized Newtonian fluid model where viscosity ($\eta$) is a function of shear rate ($\dot{\gamma}$) and temperature (T), typically following a Carreau or power-law model: $\eta(\dot{\gamma}, T) = \eta_0(T) [1 + (\lambda \dot{\gamma})^2]^{(n-1)/2}$. This model captures shear-thinning but neglects elastic effects.
• Viscoelastic Model: An isothermal model that accounts for fluid memory and elastic stresses, often using differential constitutive equations like the Giesekus or Phan-Thien–Tanner models. This is crucial for predicting phenomena like extrudate swell.

The Finite Element Method (FEM) is used to solve the governing equations (conservation of mass and momentum) for these models within the nozzle domain.

2.2. Shape Parametrization

The nozzle shape is defined parametrically to enable optimization:

• Simple Parametrization: The nozzle contour is defined by a straight convergent section with a variable half-opening angle ($\alpha$).
• Advanced Parametrization: The contour is described by a B-spline curve, controlled by a set of control points. This allows for complex, non-conical shapes that a simple angle cannot represent.

2.3. Optimization Framework

A gradient-based optimization loop is established. The objective function is the total pressure drop ($\Delta P$) from the nozzle inlet to the outlet. The design variables are the angle ($\alpha$) or the B-spline control point coordinates. The framework iteratively adjusts the geometry, re-meshes the domain, re-simulates the flow, and computes the sensitivity of $\Delta P$ to the design variables until a minimum is found.

3. Results & Discussion

3.1. Viscous Model Results

For the viscous model, the optimal half-opening angle ($\alpha_{opt}$) showed a strong dependence on the volumetric flow rate (feeding rate).

• High Flow Rates: Favored smaller convergent angles, with $\alpha_{opt}$ near 30°. A steeper convergence at high flow minimizes viscous dissipation in the long, narrow region of high shear.
• Low Flow Rates: Allowed for larger optimal angles (e.g., 60°-70°). The flow is less dominated by shear, and a gentler taper reduces entrance effects.

Chart Description: A plot of $\Delta P$ vs. $\alpha$ for different flow rates would show distinct minima, with the minimum point shifting leftward (to smaller angles) as flow rate increases.

3.2. Viscoelastic Model Results

In contrast, the viscoelastic model predicted a much weaker dependence of $\alpha_{opt}$ on the feeding rate. The optimal angle remained within a narrower band across different flow conditions. This is attributed to the competing effects of viscous shear and elastic normal stresses, which have different geometric sensitivities. The elastic stresses, which are not captured by the viscous model, modify the optimal flow path.

3.3. Comparison & Key Insights

1. Model Choice is Critical: The constitutive model fundamentally changes the optimization outcome. A design optimized using a simple viscous model may be sub-optimal for real viscoelastic melts, especially if elastic extrudate swell is a concern for deposition accuracy.

2. Diminishing Returns of Complexity: A pivotal finding is that the advanced B-spline parametrization yielded only marginal improvements in pressure loss reduction compared to the simple angle optimization. This suggests that for the primary goal of minimizing $\Delta P$, a simple conical nozzle with a well-chosen angle is nearly optimal. The value of complex shapes may lie in addressing secondary objectives (e.g., controlling swell, reducing stagnation zones).

3. Flow-Rate-Dependent Design: For viscous-dominated flows (or certain materials), the results advocate for adaptive or application-specific nozzle designs rather than a one-size-fits-all approach, especially when targeting a wide range of printing speeds.

4. Technical Details & Formulas

The governing equations for incompressible flow are:

Conservation of Mass: $\nabla \cdot \mathbf{v} = 0$

Conservation of Momentum: $\rho \frac{D\mathbf{v}}{Dt} = -\nabla p + \nabla \cdot \boldsymbol{\tau}$

Where $\mathbf{v}$ is velocity, $p$ is pressure, $\rho$ is density, and $\boldsymbol{\tau}$ is the deviatoric stress tensor.

For the Viscous Model: $\boldsymbol{\tau} = 2 \eta(\dot{\gamma}, T) \mathbf{D}$, where $\mathbf{D}$ is the rate-of-deformation tensor.

For a Viscoelastic Model (e.g., Giesekus):
$\boldsymbol{\tau} + \lambda \stackrel{\triangledown}{\boldsymbol{\tau}} + \frac{\alpha_G}{\eta} (\boldsymbol{\tau} \cdot \boldsymbol{\tau}) = 2 \eta \mathbf{D}$
Where $\lambda$ is relaxation time, $\alpha_G$ is the mobility parameter, and $\stackrel{\triangledown}{\boldsymbol{\tau}}$ is the upper-convected derivative.

5. Analysis Framework Example

Case Study: Optimizing for High-Speed PLA Printing

Objective: Design a nozzle for printing PLA at 150 mm/s layer speed.

Steps:

1. Material Characterization: Obtain rheological data for PLA at printing temperature (e.g., 210°C) to fit parameters for both a Carreau-Yasuda (viscous) and a Giesekus (viscoelastic) model.
2. Baseline Simulation: Model a standard 30° conical nozzle. Simulate with both models to establish baseline $\Delta P$ and flow field.
3. Angle Sweep (Viscous First): Run the viscous optimization loop, varying $\alpha$ from 15° to 75°. Identify $\alpha_{opt}^{visc}$ (~30-35° for high speed).
4. Viscoelastic Validation: Simulate the geometry from Step 3 using the viscoelastic model. Compare $\Delta P$ and observe extrudate swell prediction.
5. Trade-off Analysis: If viscoelastic $\Delta P$ is acceptable and swell is controlled, adopt the simple conical design. If not, initiate a multi-objective optimization (minimize $\Delta P$ and swell) using the B-spline framework.

This structured approach prioritizes simplicity and model-aware decision-making.

6. Future Applications & Directions

• Multi-Physics & Multi-Objective Optimization: Future work must integrate heat transfer to model non-isothermal flows and couple flow optimization with objectives like minimizing thermal degradation or improving layer adhesion strength.
• Machine Learning-Augmented Design: Leveraging techniques like neural networks as surrogate models, similar to advancements in aerodynamic shape optimization (see Journal of Fluid Mechanics, Vol. 948, 2022), could drastically reduce the computational cost of exploring the complex design space enabled by B-splines.
• Active or Multi-Material Nozzles: Exploring designs with internal flow guides or sections made from materials with different thermal properties to actively manage shear and temperature profiles.
• Standardization of Benchmarking: The community would benefit from standardized benchmark cases for FDM nozzle flow, akin to the 4:1 planar contraction for viscoelastic flows, to compare different models and optimization methods.

7. References

1. Bird, R. B., Armstrong, R. C., & Hassager, O. (1987). Dynamics of Polymeric Liquids, Vol 1: Fluid Mechanics. Wiley.
2. Haleem, A., et al. (2017). Role of feed force in FDM: A review. Rapid Prototyping Journal.
3. Nzebuka, G. C., et al. (2022). CFD analysis of polymer flow in FDM nozzles. Physics of Fluids.
4. Schuller, M., et al. (2024). High-speed FDM: Challenges in feeding mechanics. Additive Manufacturing.
5. Zhu, J., et al. (2022). Deep learning for aerodynamic shape optimization. Journal of Fluid Mechanics, 948, A34. (External reference for ML in optimization)
6. Open-source CFD software: OpenFOAM and FEATool for multiphysics simulation.
