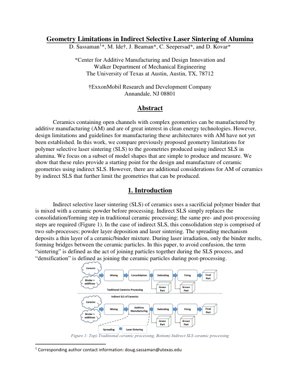

Geometry Limitations in Indirect Selective Laser Sintering of Alumina

Table of Contents

1. Introduction

Indirect selective laser sintering (SLS) of ceramics represents a significant advancement in additive manufacturing for high-performance applications. This technology utilizes a sacrificial polymer binder mixed with ceramic powder, where only the binder melts during laser irradiation to form bridges between ceramic particles. The process replaces traditional consolidation steps while maintaining conventional pre- and post-processing requirements.

Complex ceramic geometries with open channels are particularly valuable for clean energy technologies, yet comprehensive design guidelines remain underdeveloped. Previous research has primarily focused on geometric accuracy of simple shapes, with notable contributions from KU Leuven and University of Missouri Rolla establishing baseline capabilities for hole production and helical channels.

2. Materials and Methods

2.1 Materials Composition

The study employed a blended alumina/nylon powder system adapted from Deckers et al. The mixture consisted of 78 wt.% alumina (Almatis A16 SG, d50=0.3μm) with 22 wt.% PA12 (ALM PA650 d50=58μm), dry-mixed in a high-shear blender for 10 minutes and sieved through a 250 μm mesh.

2.2 SLS Processing Parameters

Experiments utilized the Laser Additive Manufacturing Pilot System (LAMPS) at The University of Texas at Austin. Parameters were empirically optimized to minimize binder degradation and part curl:

• Laser power: 4-10 W
• Laser scan speed: 200-1000 mm/s
• Layer thickness: 100 μm
• Beam hatch spacing: 275 μm
• Spot size: 730 μm (1/e² diameter)

3. Experimental Results

The research demonstrates that geometry limitations originally developed for polymer SLS provide a valuable starting point for ceramic indirect SLS, but additional constraints emerge due to material-specific phenomena. Key findings include successful production of holes with diameters of 1 mm ± 0.12 mm, consistent with Nolte et al.'s previous work, while identifying ceramic-specific limitations in overhang structures and channel geometries.

4. Technical Analysis

Core Insight

The fundamental breakthrough here isn't the ceramic SLS process itself—that's been around—but the systematic mapping of geometric limitations that actually work in production environments. Most academic papers oversell capabilities; this one delivers practical constraints that engineers can actually use.

Logical Flow

The research follows a brutally honest progression: start with established polymer rules, test them against ceramic reality, document where they fail, and build new constraints from the wreckage. The methodology adapts Allison et al.'s metrology part specifically to expose ceramic-specific failure modes rather than just validating success cases.

Strengths & Flaws

Strengths: The empirical parameter optimization using visual and thermal imaging shows real-world pragmatism. The custom LAMPS system provides control that commercial machines often lack. The focus on measurable, repeatable geometric features rather than abstract "complex geometries" makes the results actually useful.

Flaws: The limited material system (alumina/nylon only) raises questions about generalizability. The paper acknowledges but doesn't fully quantify the impact of post-processing shrinkage on final dimensions—a critical gap for precision applications.

Actionable Insights

Designers should start with polymer SLS rules as a baseline but apply 15-20% additional margin for ceramic-specific factors. Focus on controlling binder distribution through improved mixing protocols. Implement in-process monitoring specifically for thermal anomalies that indicate impending geometric failures.

Technical Formulations

The energy density equation for SLS processing follows:

$E_d = \\frac{P}{v \\cdot h \\cdot t}$

Where $E_d$ is energy density (J/mm³), $P$ is laser power (W), $v$ is scan speed (mm/s), $h$ is hatch spacing (mm), and $t$ is layer thickness (mm). For the studied parameters, energy density ranges from approximately 0.15 to 1.82 J/mm³.

Analysis Framework Example

Case Study: Channel Design Optimization

When designing open channels for ceramic SLS, consider the following framework:

1. Minimum Wall Thickness: Start with 1.5× polymer SLS recommendations
2. Overhang Angles: Limit to 30° from vertical versus 45° for polymers
3. Feature Resolution: Apply 0.2 mm additional tolerance for binder migration effects
4. Post-Processing Compensation: Design features 8-12% oversized to account for densification shrinkage

5. Future Applications

The development of reliable geometric design rules for ceramic indirect SLS opens significant opportunities in multiple domains:

• Energy Systems: Catalytic converters with optimized flow paths and heat exchangers with complex internal geometries
• Biomedical: Patient-specific bone scaffolds with controlled porosity and surface topography
• Chemical Processing: Microreactors with integrated mixing and reaction channels
• Aerospace: Lightweight thermal protection systems with graded material properties

Future research directions should focus on multi-material capabilities, in-situ quality monitoring, and machine learning-based parameter optimization to further expand the geometric possibilities.
