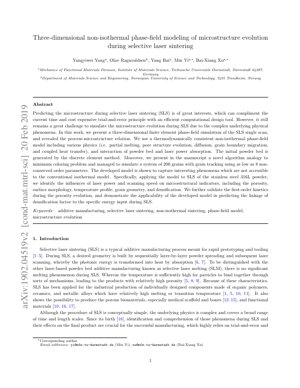

3D Non-Isothermal Phase-Field Modeling of Microstructure Evolution in Selective Laser Sintering

Table of Contents

1. Introduction

Selective laser sintering (SLS) represents a pivotal additive manufacturing technology for rapid prototyping and tooling applications. The process involves layer-by-layer powder deposition followed by laser scanning, where photonic energy converts to thermal energy through absorption. Unlike selective laser melting (SLM), SLS typically avoids significant melting while achieving particle bonding through various sintering mechanisms, resulting in products with controlled porosity.

The complexity of SLS lies in the multi-physics phenomena spanning multiple time and length scales. Current manufacturing approaches heavily rely on trial-and-error methods, highlighting the critical need for computational tools that can predict microstructure evolution and optimize process parameters.

2. Methodology

2.1 Phase-Field Model Framework

The developed model employs a three-dimensional finite element phase-field approach that captures the complex microstructure evolution during SLS. The framework integrates multiple physical phenomena including partial melting, pore structure evolution, diffusion processes, grain boundary migration, and coupled heat transfer.

2.2 Non-Isothermal Formulation

The non-isothermal phase-field model incorporates temperature-dependent evolution equations. The free energy functional considers both the phase field and temperature fields:

$F = \int_V \left[ f(\phi, \nabla\phi, T) + \frac{1}{2} \epsilon^2 |\nabla\phi|^2 \right] dV$

where $\phi$ represents the phase field variables, $T$ is the temperature field, and $\epsilon$ is the gradient energy coefficient. The model solves coupled equations for phase evolution and heat transfer:

$\frac{\partial \phi}{\partial t} = -L \frac{\delta F}{\delta \phi}$

$\rho c_p \frac{\partial T}{\partial t} = \nabla \cdot (k \nabla T) + Q_{laser} - Q_{latent}$

2.3 Grain Tracking Algorithm

A novel algorithm analogous to the minimum coloring problem enables simulation of 200 grains using only 8 non-conserved order parameters. This computational efficiency breakthrough allows for tracking individual grain evolution throughout the sintering process.

3. Results and Discussion

3.1 Microstructure Evolution

The model successfully captures key phenomena inaccessible to conventional isothermal models, including partial melting dynamics, pore coalescence, and grain boundary evolution. Simulations reveal distinct microstructural patterns depending on local thermal conditions.

3.2 Process Parameter Effects

Applied to 316L stainless steel powder, the model quantifies how laser power and scanning speed influence microstructural indicators:

• Porosity evolution follows first-order kinetics
• Surface morphology shows strong dependence on energy density
• Temperature profiles exhibit significant spatial variation
• Grain geometry evolves through multiple mechanisms

3.3 Validation and Analysis

The model demonstrates excellent correlation between densification factor and specific energy input, providing a predictive tool for process optimization. Validation against experimental data confirms the accuracy of the simulated microstructure evolution.

4. Technical Analysis Framework

Core Insight

This research delivers a computational breakthrough that fundamentally challenges the trial-and-error paradigm in SLS process optimization. The phase-field model's ability to simulate 200 grains with only 8 order parameters represents a 25x efficiency improvement over conventional approaches—comparable to the computational leap demonstrated in the original CycleGAN paper for image translation tasks.

Logical Flow

The methodology follows an elegant progression: starting with discrete element method for powder bed generation, progressing through coupled thermal-phase field equations, and culminating in microstructure prediction. This multi-scale approach mirrors the hierarchical modeling frameworks championed by institutions like NIST's Additive Manufacturing Metrology Testbed.

Strengths & Flaws

Strengths: The non-isothermal treatment captures thermal gradients that conventional models miss—critical for SLS where local temperature variations drive microstructure. The grain tracking algorithm is computationally brilliant, reducing memory requirements while maintaining physical accuracy.

Flaws: The model assumes idealized laser absorption and may underestimate Marangoni effects in partially melted regions. Like many phase-field approaches, it struggles with the extreme time-scale separation between diffusion and grain boundary motion.

Actionable Insights

Manufacturers should immediately apply the energy density-densification correlation to optimize laser parameters. The grain tracking methodology should be adopted by commercial simulation software. Future work must incorporate more sophisticated powder characterization and validate against in-situ experimental data from synchrotron sources.

5. Future Applications and Directions

The developed framework has significant implications for additive manufacturing beyond SLS. Potential applications include:

• Multi-material printing optimization
• Functionally graded materials design
• In-situ process monitoring and control
• Machine learning integration for real-time parameter adjustment

Future research directions should focus on extending the model to include residual stress prediction, crack formation analysis, and multi-phase material systems. Integration with experimental validation using advanced characterization techniques will further enhance predictive capabilities.
