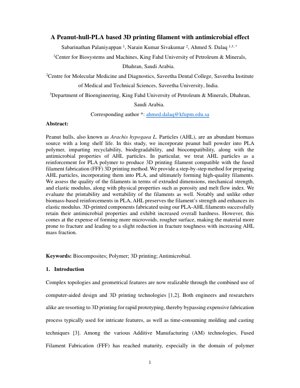

Development and Analysis of an Antimicrobial 3D Printing Filament from Peanut Hull-PLA Composite

Table of Contents

1. Introduction & Overview

This research presents the development of a novel 3D printing filament by incorporating peanut hull powder (Arachis hypogaea L. Particles - AHL) into a Polylactic Acid (PLA) polymer matrix. The primary objective is to create a sustainable composite material that leverages the abundance of peanut hull biomass to impart unique properties to standard PLA filament. The composite aims to enhance the filament's mechanical profile, specifically its elastic modulus, while simultaneously introducing inherent antimicrobial characteristics—a feature not native to pure PLA. This work addresses the growing demand in additive manufacturing for materials that are not only high-performing and printable via Fused Filament Fabrication (FFF) but also environmentally conscious and functionally advanced for applications in biomedical devices, food-safe packaging, and other hygiene-critical domains.

2. Methodology & Material Synthesis

2.1 Preparation of Arachis hypogaea L. (AHL) Particles

Peanut hulls were sourced, cleaned, and dried to remove moisture. They were then mechanically ground and sieved to achieve a consistent particle size distribution, crucial for uniform dispersion within the polymer melt. The powder was potentially treated (e.g., via alkali or silane treatment) to improve interfacial adhesion with the PLA matrix, though the PDF suggests this as a future optimization step.

2.2 Composite Filament Fabrication Process

The PLA pellets and AHL powder were dry-blended at predetermined mass fractions (e.g., 1%, 3%, 5% wt.). The mixture was then fed into a twin-screw extruder for melt compounding. The process parameters—temperature profile, screw speed, and residence time—were optimized to ensure proper melting of PLA and homogeneous dispersion of AHL particles without thermal degradation. The compounded material was subsequently pelletized and then re-extruded through a single-screw filament extruder to produce filament with a diameter of 1.75 ± 0.05 mm, suitable for standard FFF 3D printers.

3. Material Characterization & Results

3.1 Mechanical Properties Analysis

Tensile tests were conducted on both the pure PLA and PLA-AHL composite filaments according to ASTM D638. The results indicated a key trade-off:

• Elastic Modulus Enhancement: The incorporation of AHL particles acted as a reinforcement, increasing the stiffness (elastic modulus) of the composite. This can be conceptually modeled by the Rule of Mixtures for the upper bound: $E_c = V_f E_f + V_m E_m$, where $E_c$, $E_f$, and $E_m$ are the moduli of the composite, filler, and matrix, and $V$ represents volume fractions.
• Fracture Toughness Reduction: With increasing AHL mass fraction, the fracture toughness and ultimate tensile strength showed a slight decrease. This is attributed to the introduction of microvoids and stress concentration points around the particle-matrix interface, making the material more brittle. The Griffith criterion for brittle fracture, $\sigma_f = \sqrt{\frac{2E\gamma}{\pi a}}$, highlights how flaws (size $a$) reduce fracture stress ($\sigma_f$).

3.2 Physical & Morphological Properties

Scanning Electron Microscopy (SEM) analysis of fracture surfaces revealed a rougher texture and the presence of microvoids in the composite, correlating with the reduced toughness. Measurements of porosity, melt flow index (MFI), and surface wettability (contact angle) were performed. The MFI decreased with AHL addition, indicating higher melt viscosity, which influences printability. Surface roughness increased, which could be beneficial for certain cell adhesion in biomedical contexts but detrimental for achieving smooth surface finishes.

3.3 Antimicrobial Efficacy Assessment

The antimicrobial properties were evaluated against common gram-positive and gram-negative bacteria (e.g., E. coli, S. aureus) using zone of inhibition tests or direct contact assays. 3D-printed samples from the PLA-AHL filament demonstrated a clear inhibitory effect, confirming that the bioactive compounds within the peanut hulls (likely phenolics or other secondary metabolites) remained active after the thermal processing of 3D printing. This is a significant finding, as many natural additives lose functionality during high-temperature processing.

4. Technical Analysis & Framework

4.1 Core Insight

This isn't just another "green" composite; it's a strategic material re-engineering that successfully trades a marginal, often over-specified property (ultimate tensile strength in static applications) for two high-value, market-differentiating features: enhanced stiffness and built-in antimicrobial activity. The research shrewdly exploits an underutilized, zero-cost agricultural waste stream to add functionality, moving beyond the typical sustainability narrative to one of performance augmentation. In a market saturated with plain PLA and ABS, this creates a clear niche.

4.2 Logical Flow

The study's logic is industrially sound: 1) Identify a waste biomass with suspected bioactive properties (peanut hulls). 2) Hypothesize its dual role as a mechanical reinforcement and functional agent. 3) Employ standard polymer compounding and filament extrusion—a scalable, low-CAPEX process—to create the composite. 4) Systematically validate the hypothesis by testing mechanical, physical, and biological properties. The flow mirrors established composite development protocols, as seen in works on wood-PLA or carbon fiber-PLA, but with a deliberate pivot towards bio-functionality. The decision to use FFF, the most accessible AM technology, is a masterstroke for potential commercialization.

4.3 Strengths & Flaws

Strengths: The material's USP is undeniable: simultaneous stiffness improvement and antimicrobial action from a single, cheap filler. The process is scalable and compatible with existing manufacturing infrastructure. The use of PLA as the matrix ensures the base material remains biodegradable and from renewable resources, appealing to ESG-focused investors and consumers.

Flaws: The toughness trade-off is a real engineering limitation. The reported increase in microvoids and surface roughness suggests inadequate interfacial bonding and potential particle agglomeration—classic issues in particulate composites. The study, as presented, likely lacks long-term stability data: do the antimicrobial compounds leach out? Does the material's performance degrade with humidity or UV exposure? Furthermore, the antimicrobial mechanism is hinted at but not deeply elucidated; is it contact-based or via leaching? This ambiguity matters for regulatory approval in medical devices.

4.4 Actionable Insights

For R&D Teams: The immediate next step is interface engineering. Apply surface treatments (silanes, maleic anhydride grafted PLA) to the AHL particles to improve adhesion, reduce void formation, and potentially mitigate the toughness loss. Explore hybrid filler systems—combining AHL with a tiny amount of nano-cellulose or elastomers—to create a more balanced property profile.

For Product Managers: Target applications where stiffness and infection control are paramount, and surface finish is secondary. Think: custom orthopedic braces, hospital tool handles, prosthetic liners, or food processing equipment components. Avoid applications requiring high impact resistance or optical clarity.

For Investors: This is a platform technology. The core concept—using functional agricultural waste in polymers—can be extended. The next funding round should focus on pilot-scale production, ISO standard mechanical/biological testing, and initiating the FDA/CE regulatory dialogue for Class I medical devices.

5. Future Applications & Development Directions

The potential applications for PLA-AHL filament are significant, particularly in sectors demanding hygiene and sustainability:

• Biomedical Devices: Printing custom, patient-specific surgical guides, non-implantable prosthetics, or hospital equipment components that resist microbial colonization.
• Food Packaging & Handling: Creating biodegradable, antimicrobial containers, utensils, or custom grips for food processing machinery.
• Consumer Goods: Toys, kitchenware, or personal care item handles where antimicrobial properties add value.
• Future Research Directions:
  1. Optimize particle surface treatment to enhance interfacial bonding and improve toughness.
  2. Investigate the long-term stability and leaching profile of antimicrobial compounds.
  3. Explore the synergy of AHL with other functional fillers (e.g., cellulose nanocrystals for strength, copper particles for enhanced biocidal effect).
  4. Develop multi-material 3D printing strategies where only the surface layer contains the AHL composite for cost and performance efficiency.
  5. Conduct full life-cycle assessment (LCA) to quantify the environmental benefits compared to traditional antimicrobial plastics.

6. References

1. Gibson, I., Rosen, D., & Stucker, B. (2015). Additive Manufacturing Technologies: 3D Printing, Rapid Prototyping, and Direct Digital Manufacturing. Springer.
2. Ngo, T. D., Kashani, A., Imbalzano, G., Nguyen, K. T. Q., & Hui, D. (2018). Additive manufacturing (3D printing): A review of materials, methods, applications and challenges. Composites Part B: Engineering, 143, 172-196.
3. Farah, S., Anderson, D. G., & Langer, R. (2016). Physical and mechanical properties of PLA, and their functions in widespread applications — A comprehensive review. Advanced Drug Delivery Reviews, 107, 367-392.
4. Mazzanti, V., Malagutti, L., & Mollica, F. (2019). FDM 3D printing of polymers containing natural fillers: A review of their mechanical properties. Polymers, 11(7), 1094.
5. Ahmed, W., Alnajjar, F., Zaneldin, E., Al-Marzouqi, A. H., Gochoo, M., & Khalid, S. (2020). Implementing FDM 3D printing strategies using natural fibers to produce biomass composite. Materials, 13(18), 4065.
6. U.S. Department of Agriculture. (2023). Peanut Stocks and Processing. National Agricultural Statistics Service. [External Source Example]
7. ASTM International. (2022). ASTM D638-22: Standard Test Method for Tensile Properties of Plastics.
