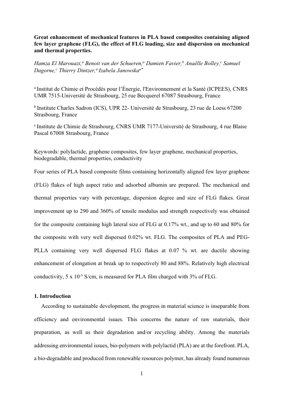

Mechanical and Thermal Enhancement of PLA Composites with Aligned Few-Layer Graphene

Table of Contents

1. Introduction & Overview

This research investigates the significant enhancement of mechanical, thermal, and electrical properties in Polylactide (PLA) composites through the incorporation of horizontally aligned Few-Layer Graphene (FLG) flakes. The study systematically examines the effects of FLG loading percentage, lateral size, and dispersion quality on the final composite performance. PLA, a biodegradable polymer derived from renewable resources, faces limitations in mechanical strength and thermal stability for advanced applications. This work addresses these challenges by leveraging the exceptional properties of 2D graphene-based materials.

The core innovation lies in achieving horizontal alignment of high-aspect-ratio FLG flakes within the PLA matrix, coupled with the use of albumin as a dispersing agent. This approach leads to unprecedented improvements: up to 290% increase in tensile modulus and 360% increase in tensile strength at minimal FLG loadings (0.17 wt.%). The research provides a comprehensive framework for optimizing biodegradable composite materials for sustainable engineering applications.

2. Materials and Methodology

2.1 Materials and FLG Preparation

Four distinct series of PLA-based composite films were prepared. The matrix materials included pure PLA and PLA blended with poly(ethylene glycol)-block-poly(L-lactide) (PEG-PLLA). The filler consisted of Few-Layer Graphene (FLG) flakes characterized by high aspect ratios. The FLG was functionalized and dispersed using albumin protein to enhance compatibility with the polymer matrix and prevent agglomeration. FLG samples varied in lateral size (from sub-micron to several microns) and were obtained through controlled exfoliation processes.

2.2 Composite Fabrication Process

The composites were fabricated using a solution-casting method followed by controlled evaporation to induce horizontal alignment of the FLG flakes. The process involved:

1. Dispersion of FLG in a suitable solvent with albumin.
2. Mixing with dissolved PLA (or PLA/PEG-PLLA).
3. Casting the mixture onto a substrate.
4. Controlled solvent evaporation to promote FLG alignment parallel to the film surface.
5. Final drying and conditioning of the films.

The alignment is critical for maximizing property enhancement, as it optimizes stress transfer and creates efficient conductive pathways.

3. Results and Discussion

3.1 Mechanical Property Enhancement

The incorporation of aligned FLG resulted in dramatic improvements in mechanical properties, far exceeding those reported in most previous studies for PLA-graphene composites.

• Tensile Modulus: Increased by up to 290% for composites with 0.17 wt.% of large lateral size FLG.
• Tensile Strength: Increased by up to 360% under the same conditions.
• Elongation at Break: Notably, for composites with very well-dispersed FLG at 0.07 wt.%, the material became ductile. Elongation at break increased by 80% for PLA and 88% for PLA/PEG-PLLA composites, countering the typical brittleness induced by fillers.

3.2 Effect of FLG Loading and Size

The study clearly demonstrates a non-linear relationship between FLG content and property enhancement. Optimal performance was achieved at very low loadings (0.02-0.17 wt.%), highlighting the efficiency of the aligned, well-dispersed system. Beyond these levels, agglomeration likely reduces benefits. Larger lateral size FLG flakes provided superior reinforcement due to their higher aspect ratio, which improves load transfer across the polymer matrix, as described by shear-lag models.

3.3 Thermal and Electrical Properties

The composites also showed improved thermal stability. Furthermore, a significant increase in electrical conductivity was measured: $5 \times 10^{-3} \, S/cm$ for a PLA film containing 3 wt.% FLG. This percolation threshold is relatively low, attributed to the aligned structure creating efficient conductive networks.

4. Key Insights & Statistical Summary

Core Insights: The synergy of alignment, high aspect ratio, and excellent dispersion (via albumin) is the key differentiator. This trinity enables property enhancements at filler concentrations an order of magnitude lower than typical composites, improving cost-effectiveness and material processability.

5. Technical Analysis & Mathematical Framework

The reinforcement mechanism can be partially explained by composite theory. For aligned platelet composites, the Halpin-Tsai equations are often adapted. The modulus in the alignment direction can be estimated by:

$E_c = E_m \frac{1 + \zeta \eta \phi_f}{1 - \eta \phi_f}$

where $E_c$ is the composite modulus, $E_m$ is the matrix modulus, $\phi_f$ is the filler volume fraction, and $\eta$ is given by:

$\eta = \frac{(E_f / E_m) - 1}{(E_f / E_m) + \zeta}$

Here, $E_f$ is the filler modulus (≈ 1 TPa for graphene), and $\zeta$ is a shape factor dependent on the aspect ratio ($\alpha = \text{length/thickness}$). For aligned platelets, $\zeta \approx 2\alpha$. The extraordinary aspect ratio of the FLG flakes (high $\alpha$) leads to a large $\zeta$, amplifying the term $\zeta \eta \phi_f$ and explaining the dramatic modulus increase even at low $\phi_f$.

The electrical percolation threshold $\phi_c$ for aligned anisotropic fillers is lower than for randomly oriented ones: $\phi_c \propto 1/\alpha$. This aligns with the observed relatively high conductivity at 3 wt.%.

6. Experimental Results & Chart Descriptions

Figure 1 (Conceptual): Tensile Properties vs. FLG Loading. A graph showing tensile modulus and strength on the Y-axis against FLG weight percentage on the X-axis. Two curves are presented: one for "Large Lateral Size FLG" and one for "Small/Medium FLG with Excellent Dispersion." Both curves show a sharp initial increase, peaking around 0.1-0.2 wt.%, followed by a plateau or slight decline. The "Large FLG" curve reaches significantly higher peak values. A third curve for "Elongation at Break" for the PLA/PEG-PLLA composite shows an increase, peaking around 0.07 wt.%, demonstrating enhanced ductility.

Figure 2 (Conceptual): Electrical Conductivity vs. FLG Loading. A log-log plot of conductivity (S/cm) versus FLG wt.%. The curve remains near the insulator regime until a sharp percolation transition between 1-2 wt.%, jumping several orders of magnitude to reach ~$10^{-3}$ S/cm at 3 wt.%.

Micrograph (Description): Scanning Electron Microscope (SEM) image of a fractured composite surface. It shows thin, plate-like FLG flakes lying parallel to the film plane (horizontal alignment), embedded in the PLA matrix. Few aggregates are visible, indicating successful dispersion via albumin.

7. Analytical Framework: Case Study

Case: Optimizing a Biodegradable Packaging Film

Objective: Develop a PLA-based film with 50% higher stiffness and maintained transparency for premium food packaging, using minimal additive.

Analysis Framework:

1. Parameter Definition: Target property (Tensile Modulus increase $\Delta E$ = 50%). Constraints: FLG loading $\phi_f$ < 0.5 wt.% for cost/transparency; Flake size (L) > 1 µm for high $\alpha$.
2. Model Application: Use the modified Halpin-Tsai model from Section 5. Input $E_m$(PLA), target $E_c$, solve for required effective $\alpha$ and $\phi_f$.
3. Process Mapping: Select FLG source with L ≈ 2-5 µm. Define process steps: Albumin-assisted dispersion in ethyl acetate, solution mixing with PLA, casting on glass, slow evaporation (48h) for alignment.
4. Validation Metrics: Key performance indicators (KPIs): Measured $E_c$, haze/transparency (ASTM D1003), and dispersion quality score from image analysis of TEM micrographs.

This structured approach moves from property target to material selection and process design, ensuring a systematic development pathway.

8. Future Applications & Research Directions

Immediate Applications:

• High-Performance Biodegradable Packaging: For rigid containers, films requiring gas barrier and slight conductivity for anti-static purposes.
• Biomedical Devices: Resorbable implants (screws, plates) with enhanced strength and radio-opacity (via X-ray scattering from aligned graphene).
• 3D Printing Filaments: PLA/FLG composites for Fused Deposition Modeling (FDM) to print strong, lightweight, and potentially electrically trace-embedded structures.

Research Directions:

1. Multifunctionality: Explore thermal conductivity for heat dissipation in transient electronics.
2. Scalable Alignment Techniques: Investigate roll-to-roll processing, shear-induced alignment during extrusion, or magnetic alignment of functionalized FLG.
3. Advanced Characterization: Use in-situ Raman spectroscopy to monitor stress transfer efficiency to individual FLG flakes under load.
4. Lifecycle Analysis (LCA): Conduct a full LCA to quantify the environmental benefit of using minimal, high-performance filler versus traditional additives.
5. Interface Engineering: Systematically study other bio-derived dispersants or covalent functionalization of FLG to further strengthen the polymer-filler interface.

9. References

1. Gao, Y., et al. (2017). "Graphene and polymer composites for supercapacitor applications: a review." Nanoscale Research Letters, 12(1), 387. (For context on graphene-polymer composites).
2. Bao, C., et al. (2012). "Preparation of graphene by pressurized oxidation and multiplex reduction and its polymer nanocomposites by masterbatch-based melt blending." Journal of Materials Chemistry, 22(13), 6088. (Cited in PDF for 35% strength improvement).
3. Kim, H., et al. (2010). "Graphene/polymer nanocomposites." Macromolecules, 43(16), 6515-6530. (Foundational review).
4. National Institute of Standards and Technology (NIST). "Polymer Composite Materials." https://www.nist.gov/materials-and-chemistry/polymer-composite-materials (For standards and testing frameworks).
5. Halpin, J. C., & Kardos, J. L. (1976). "The Halpin-Tsai equations: A review." Polymer Engineering & Science, 16(5), 344-352. (Theoretical basis for modeling).

10. Original Expert Analysis

Core Insight: This paper isn't just about adding graphene to PLA; it's a masterclass in nanostructure control. The authors have cracked the code on how to translate the theoretical potential of 2D materials into practical, dramatic property gains by meticulously engineering the filler's orientation, dispersion, and interface. The reported 360% strength boost at 0.17 wt.% isn't an incremental step—it's a paradigm shift, demonstrating that "less is more" when the "less" is perfectly orchestrated. This challenges the prevailing industry mindset of simply increasing filler load to meet specs, a practice that often degrades processability and cost.

Logical Flow: The research logic is impeccable. It starts with a clear problem (PLA's mechanical shortcomings), identifies the ideal solution candidate (high-aspect-ratio FLG), recognizes the historical roadblocks (poor dispersion, random orientation), and systematically deploys targeted solutions (albumin dispersant, solution-casting alignment). The experimental design elegantly isolates variables—loading, size, dispersion—to build a coherent map of structure-property relationships. This is a textbook example of hypothesis-driven materials science.

Strengths & Flaws: The primary strength is the holistic approach, combining materials synthesis, processing innovation, and multi-faceted characterization. The use of albumin, a bio-derived protein, is a clever, sustainable touch that enhances the green credentials of the final composite. However, the analysis has a critical flaw: it remains largely in the realm of lab-scale, solution-processed films. The elephant in the room is melt-processability. Most industrial PLA products are extruded or injection molded. Can this alignment be achieved in a high-shear, viscous melt without destroying the flakes or causing agglomeration? The paper is silent on this crucial scalability challenge. Furthermore, while electrical conductivity is mentioned, a deeper dive into the percolation behavior and its correlation with the aligned morphology is missing.

Actionable Insights: For R&D managers, the takeaway is clear: shift focus from filler quantity to filler architecture. Investment should flow into process technologies that control orientation (e.g., extensional flow fields, guided assembly) and interface engineering (e.g., scalable bio-surfactants). For start-ups, this work validates a high-value proposition: ultra-low loading, high-performance biodegradable composites. The immediate product development path should be high-margin, low-volume applications like biomedical implants or specialty films where solution processing is feasible. Concurrently, a dedicated parallel research track must tackle melt-processing routes, potentially exploring solid-state shear pulverization or in-situ polymerization around pre-aligned templates. This research is a brilliant proof-of-concept; the next chapter must be written on the factory floor.
