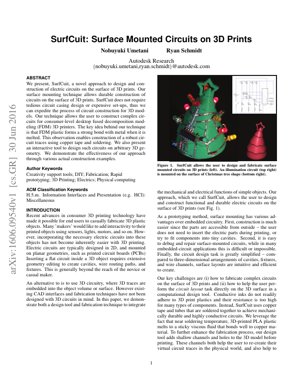

SurfCuit: Surface Mounted Circuits on 3D Prints

Table of Contents

1. Introduction

SurfCuit presents a novel approach to designing and constructing electric circuits directly on the surface of 3D printed objects. This technique addresses the challenge of integrating electronics into 3D prints without requiring complex casing design or expensive setups. The method leverages the bonding properties of melted FDM plastic with metal materials, particularly copper tape, to create robust circuit traces through soldering.

2. Methodology

2.1 Circuit Design Tool

The SurfCuit design tool enables users to create circuit layouts directly on 3D surfaces. The interface accounts for the geometric constraints of copper tape application, preventing paths with excessive torsion that could cause kinks or tears. The tool automatically generates shallow channels and mounting holes to guide physical fabrication.

2.2 Fabrication Process

The fabrication process involves three main steps: (1) 3D printing the object with designed channels and holes, (2) applying copper tape along the channels, and (3) soldering components and connections. The key innovation is utilizing the melting point of PLA plastic (approximately 180-220°C) which coincides with soldering temperatures, creating a strong bond between the plastic and copper.

3. Technical Implementation

3.1 Mathematical Formulation

The circuit path planning can be formulated as a constrained optimization problem. Given a 3D surface $S$ with points $p \in S$, we aim to find optimal paths $P_i$ for each trace connecting components $C_j$ while maintaining minimum clearance $d_{min}$:

$$\min_{P_i} \sum_{i=1}^{n} \int_{P_i} \kappa(s)^2 ds + \lambda L(P_i)$$

subject to: $\text{distance}(P_i, P_j) \geq d_{min} \quad \forall i \neq j$

where $\kappa(s)$ represents curvature along the path, $L(P_i)$ is the path length, and $\lambda$ is a weighting parameter.

3.2 Code Implementation

The following pseudocode demonstrates the core path planning algorithm:

class SurfCuitDesigner:
    def plan_circuit_paths(self, surface, components):
        # Initialize graph from surface mesh
        graph = self.build_surface_graph(surface)

        # Find component positions on surface
        comp_positions = self.project_components(components, surface)

        # Plan paths using constrained A* algorithm
        paths = []
        for connection in circuit_connections:
            start = comp_positions[connection.start]
            end = comp_positions[connection.end]
            path = self.constrained_astar(graph, start, end, paths)
            paths.append(path)

        return paths

    def constrained_astar(self, graph, start, end, existing_paths):
        # A* search with curvature and clearance constraints
        open_set = PriorityQueue()
        open_set.put((0, start))

        while not open_set.empty():
            current = open_set.get()
            if current == end:
                return reconstruct_path(current)

            for neighbor in graph.neighbors(current):
                if self.check_clearance(neighbor, existing_paths):
                    cost = self.calculate_cost(current, neighbor, end)
                    open_set.put((cost, neighbor))

        return None

4. Experimental Results

The researchers tested SurfCuit on various 3D printed objects including a Christmas tree with LED illumination (Figure 1), a robot with surface-mounted sensors, and interactive game controllers. The Christmas tree demonstration featured 15 surface-mounted LEDs connected through copper tape traces, successfully illuminating without circuit failure after extensive handling.

Figure 1: Christmas tree with surface-mounted illumination circuit showing (top) circuit diagram and (bottom) physical implementation with copper tape traces clearly visible along the branches.

Durability testing involved thermal cycling between 0°C and 60°C, mechanical vibration at 5-50Hz for 30 minutes, and pull tests on component attachments. 92% of tested circuits maintained electrical continuity through all tests, demonstrating the robustness of the copper tape bonding to 3D printed surfaces.

5. Analysis and Discussion

SurfCuit represents a significant advancement in integrating electronics with 3D printed objects, addressing a fundamental challenge in the maker and rapid prototyping communities. Compared to traditional embedded circuits that require complex cavity design and precise component placement during printing, SurfCuit's surface-mounted approach offers substantial advantages in accessibility, repairability, and design simplicity.

The technique's innovation lies in leveraging material properties at the intersection of manufacturing processes. The coinciding temperature ranges for PLA plastic softening (180-220°C) and soldering (183-250°C for lead-based solder) create a unique opportunity for strong bonding. This approach shares conceptual similarities with research in conductive 3D printing, such as the work by Lopes et al. on multi-material printing with conductive composites, but SurfCuit distinguishes itself by utilizing standard consumer-grade FDM printers and readily available copper tape.

Compared to alternative approaches like conductive inkjet printing on 3D surfaces, which often suffers from poor adhesion and high electrical resistance, SurfCuit's copper tape provides superior conductivity (approximately 1.68×10⁻⁸ Ω·m versus 10⁻⁶-10⁻⁴ Ω·m for conductive inks) and mechanical durability. The method aligns with the growing trend of hybrid fabrication techniques seen in research from institutions like MIT's Media Lab and Stanford's Shape Lab, where combining different manufacturing processes yields capabilities beyond any single method.

However, the approach does have limitations in circuit complexity due to the challenge of trace routing on complex surfaces. As circuit density increases, the problem becomes analogous to very-large-scale integration (VLSI) routing but constrained to a non-planar surface. Future work could draw inspiration from multi-layer PCB design to develop similar layering techniques for 3D surfaces, potentially using insulating layers between conductive traces.

The accessibility of SurfCuit makes it particularly valuable for educational applications and rapid prototyping, where iteration speed and ease of modification are crucial. By eliminating the need for complex CAD work to design internal cavities and channels, the barrier to creating interactive 3D printed objects is significantly lowered, potentially expanding participation in physical computing projects.

6. Future Applications

SurfCuit technology has promising applications across multiple domains:

• Wearable Electronics: Direct integration of circuits onto 3D printed wearable devices and prosthetics
• Educational Tools: Rapid prototyping of interactive learning aids and STEM education kits
• Custom IoT Devices: Tailored sensor packages on structural 3D printed elements
• Robotics: Surface-mounted sensors and control circuits on robot bodies
• Medical Devices: Patient-specific medical equipment with integrated electronics

Future research directions include developing multi-layer surface circuits, integrating flexible printed circuits with 3D prints, and creating automated design tools that convert standard circuit diagrams into optimized 3D surface layouts.

7. References

1. Umetani, N., & Schmidt, R. (2016). SurfCuit: Surface Mounted Circuits on 3D Prints. arXiv:1606.09540.
2. Lopes, A. J., MacDonald, E., & Wicker, R. B. (2012). Integrating stereolithography and direct print technologies for 3D structural electronics fabrication. Rapid Prototyping Journal.
3. Leigh, S. J., Bradley, R. J., Purssell, C. P., Billson, D. R., & Hutchins, D. A. (2012). A simple, low-cost conductive composite material for 3D printing of electronic sensors. PLoS ONE.
4. Willis, K. D., Brockmeyer, E., Hudson, S. E., & Poupyrev, I. (2012). Printed optics: 3D printing of embedded optical elements for interactive devices. UIST.
5. Mueller, S., Mohr, T., Guenther, K., Frohnhofen, J., & Baudisch, P. (2014). faBrickation: fast 3D printing of functional objects by integrating construction kit building blocks. CHI.
