Toolpath Design for Additive Manufacturing Using Deep Reinforcement Learning

1. Introduction

This work addresses a critical bottleneck in metal-based Additive Manufacturing (AM): the optimization of toolpaths. Traditional trial-and-error approaches are inefficient for the high-dimensional design space of toolpath strategies. The authors propose a novel paradigm shift, framing toolpath design as a Reinforcement Learning (RL) problem. An AI agent learns optimal strategies by dynamically interacting with a simulated or real AM environment, aiming to maximize long-term rewards related to build quality and properties.

2. Background & Motivation

2.1. The Toolpath Design Challenge in AM

While process parameters like laser power are well-studied, toolpath strategy's influence on final part properties (mechanical strength, residual stress, microstructure) is significant but not systematically optimized. Prior research (e.g., Steuben et al., 2016; Akram et al., 2018; Bhardwaj and Shukla, 2018) demonstrates clear correlations between patterns (unidirectional, bidirectional) and outcomes but lacks a general, automated design framework.

2.2. Reinforcement Learning Fundamentals

RL is a machine learning paradigm where an agent learns to make decisions by performing actions in an environment to maximize cumulative reward. The core components are: State ($s_t$) (environment observation), Action ($a_t$) (agent's decision), Policy ($\pi(a|s)$) (strategy mapping states to actions), and Reward ($r_t$) (feedback signal).

3. Proposed RL Framework for Toolpath Design

3.1. Problem Formulation as an MDP

The toolpath design process is modeled as a Markov Decision Process (MDP). The "state" could be the current geometry of the partially built layer or thermal history. The "action" is the selection of the next toolpath segment direction and parameters. The "reward" is a function of desired outcomes like minimizing residual stress or achieving target density.

3.2. Investigated RL Algorithms

The paper investigates three prominent classes of model-free RL algorithms for this task:

1. Policy Optimization Methods: Directly parameterize and optimize the policy $\pi_\theta(a|s)$. Can suffer from high sample complexity.
2. Value-Based Methods: Learn a value function $Q(s,a)$ or $V(s)$ to estimate future rewards (e.g., DQN).
3. Actor-Critic Methods: Hybrid approaches that learn both a policy (actor) and a value function (critic), often offering better stability and efficiency.

3.3. Reward Structure: Dense vs. Sparse

A key contribution is the analysis of reward design. Dense rewards provide frequent feedback (e.g., after each toolpath segment), guiding learning more effectively but requiring careful shaping. Sparse rewards (e.g., only at the end of a layer) are simpler to define but make learning significantly harder. The paper finds that dense reward structures lead to superior agent performance.

4. Technical Details & Methodology

4.1. State and Action Representation

The state space must encapsulate information critical for decision-making, such as a 2D grid representing the deposition status of the current layer (0 for unfilled, 1 for filled) or features derived from thermal simulation. The action space could be discrete (e.g., move North, South, East, West within the grid) or continuous (direction vector).

4.2. Mathematical Formulation

The agent's goal is to maximize the expected cumulative discounted reward, or return $G_t$: $$G_t = \sum_{k=0}^{\infty} \gamma^k r_{t+k+1}$$ where $\gamma \in [0, 1]$ is the discount factor. The policy $\pi_\theta$ is typically a neural network whose parameters $\theta$ are updated using gradient ascent on the expected return $J(\theta)$: $$\nabla_\theta J(\theta) = \mathbb{E}_{\tau \sim \pi_\theta}[\nabla_\theta \log \pi_\theta(\tau) G(\tau)]$$ where $\tau$ is a trajectory (sequence of states and actions).

5. Experimental Results & Analysis

5.1. Performance Metrics

Performance was evaluated based on the agent's ability to:

• Maximize the defined reward function (e.g., related to build quality).
• Generate complete, contiguous toolpaths for target geometries.
• Demonstrate sample efficiency (reward vs. number of training episodes).

5.2. Key Findings

• Feasibility Proven: The RL framework successfully learned non-trivial toolpath strategies for arbitrary part geometries.
• Reward Design is Critical: Dense reward structures were essential for practical learning, overcoming the exploration challenge inherent in sparse-reward settings.
• Algorithm Comparison: While all three RL classes showed promise, actor-critic methods (like PPO or SAC) likely offered the best trade-off between stability and sample efficiency for this continuous or high-dimensional discrete action space, though the preprint's details are limited.

6. Analysis Framework & Case Example

Framework Application (Non-Code Example): Consider designing a toolpath for a simple rectangular layer to minimize thermal stress. The RL framework would operate as follows:

1. State: A matrix representing which grid cells in the rectangle are filled. Initial state is all zeros.
2. Action: Choose the next cell to fill and the direction of travel from the current deposition point.
3. Reward (Dense): +1 for filling a new cell, -0.1 for moving to a non-adjacent cell (promoting continuity), +10 for completing a row without long jumps, -5 if the simulated thermal gradient exceeds a threshold (penalizing stress).
4. Training: The agent explores millions of such sequences. Through trial and error, it discovers that a "meander" or "zig-zag" pattern within localized zones (akin to strategies in research from MIT on voxel-level control) often yields the highest cumulative reward, effectively learning a stress-minimizing policy.

7. Future Applications & Research Directions

• Multi-Objective Optimization: Extending the reward function to simultaneously optimize for conflicting goals like speed, strength, surface finish, and residual stress.
• Integration with High-Fidelity Simulators: Coupling the RL agent with multiphysics simulation tools (e.g., thermal-fluid models) for more accurate reward signals, moving towards a digital twin for AM process optimization.
• Transfer Learning & Meta-Learning: Training a generalist agent on a library of part geometries that can quickly adapt to new, unseen shapes, drastically reducing setup time for custom parts.
• Real-Time Adaptive Control: Using in-situ monitoring data (e.g., melt pool imaging) as part of the state representation, allowing the agent to dynamically adjust the toolpath in response to process anomalies.

8. References

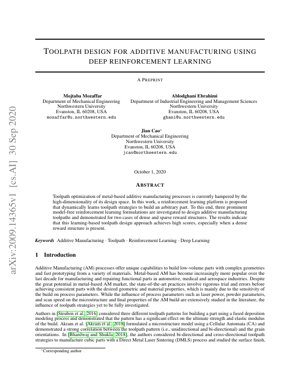

1. Mozaffar, M., Ebrahimi, A., & Cao, J. (2020). Toolpath Design for Additive Manufacturing Using Deep Reinforcement Learning. arXiv preprint arXiv:2009.14365.
2. Steuben, J. C., et al. (2016). Toolpath optimization for additive manufacturing processes. Proceedings of the ASME 2016 International Design Engineering Technical Conferences and Computers and Information in Engineering Conference.
3. Akram, J., et al. (2018). A methodology for predicting microstructure from thermal history in additive manufacturing. Proceedings of the 29th Annual International Solid Freeform Fabrication Symposium.
4. Bhardwaj, T., & Shukla, M. (2018). Effect of toolpath strategy on the properties of DMLS parts. Rapid Prototyping Journal.
5. Sutton, R. S., & Barto, A. G. (2018). Reinforcement Learning: An Introduction (2nd ed.). The MIT Press.
6. Liu, C., et al. (2020). Intelligent additive manufacturing and design: state of the art and future perspectives. Additive Manufacturing, 101091.
