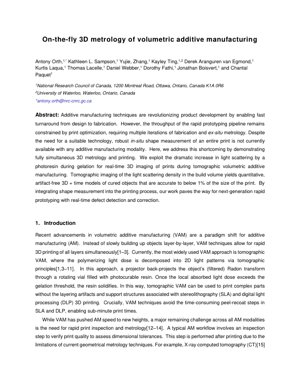

Binciken Girma na 3D A-lokacin Ƙirƙira don Ƙirƙirar Ƙari na Volumetric: Gano da Gyara Kurakurai A-lokacin Gaskiya

1. Gabatarwa

Ƙirƙirar Ƙari na Volumetric (VAM) tana wakiltar sauyi daga dabarun gargajiya na yin Layer-by-layer, tana ba da damar ƙirƙirar abubuwa gabaɗaya cikin sauri, a lokaci guda na 3D. Duk da haka, tsarin ƙirƙira mai sauri yana ci gaba da kasancewa cikin matsalar binciken bayan bugu da binciken girma. Hanyoyin yanzu kamar CT na X-ray ko sikanin gani (optical scanning) ba a cikin wurin ba ne, suna ɗaukar lokaci, kuma ba za a iya haɗa su cikin tsarin bugu ba. Wannan aikin yana magance wannan gibi mai mahimmanci ta hanyar gabatar da cikakken tsarin binciken girma na 3D da bugu a lokaci guda don VAM na tomographic.

Babban ƙirƙira yana amfani da haɓakar watsar haske da photoresin ke yi yayin lokacin ƙanƙararsa. Ana amfani da wannan canjin zahiri don yin hoto na 3D na bugu a-lokacin gaskiya, ba tare da kurakurai ba yayin da yake samuwa, yana cimma daidaiton geometric ƙasa da 1% na girman bugu. Wannan haɗin yana buɗe hanya don sarrafa AM a cikin madauki.

2. Hanyoyi & Cikakkun Bayanai na Fasaha

2.1. Ka'idar Tomographic VAM

A cikin VAM na tomographic, ana rarraba samfurin dijital na 3D zuwa jerin tsarin haske na 2D (tsinkaya) ta hanyar ka'idojin sake gina tomographic (kamar binciken CT na baya). Ana tsinkaya waɗannan tsare-tsaren ta cikin kwalban jujjuyawa mai ɗauke da resin mai iya ƙanƙarawa daga kusurwoyi da yawa. Inda adadin hasken da aka tara ya wuce ƙofar ƙanƙara, resin ɗin yana ƙarfafa, yana samar da abin da ake so gaba ɗaya, yana kawar da layukan Layer da buƙatar tallafi.

2.2. Watsar Hasken don Binciken Girma A-cikin Wurin

Mabuɗin binciken girma a-cikin wuri shine canji a cikin kaddarorin gani na resin. Ruwan resin yana da gaskiya sosai, amma lokacin ƙanƙara, yana zama mai watsawa sosai saboda samuwar hanyar sadarwar polymer tare da rashin daidaiton ma'auni na nunin haske. Ta hanyar haskaka ƙarar gini da amfani da kyamara don ɗaukar hasken da aka watsa daga kusurwoyi da yawa, ana iya sake gina taswirar yawan watsawa na 3D—wanda kai tsaye yayi daidai da siffar da aka ƙarfafa—a-lokacin gaskiya.

2.3. Tsarin Lissafi

Sake gina yawan watsawa na 3D $\rho(\mathbf{r}, t)$ daga tsinkayar 2D da aka kama $P_\theta(\mathbf{x}, t)$ yana bin ka'idojin binciken lissafi (computed tomography). Don kusurwar tsinkaya da aka bayar $\theta$, ana ƙirƙira alaƙar ta hanyar canjin Radon:

$P_\theta(\mathbf{x}, t) = \mathcal{R}[\rho(\mathbf{r}, t)] = \int_{L(\mathbf{x}, \theta)} \rho(\mathbf{r}, t) \, ds$

inda $L(\mathbf{x}, \theta)$ shine layin da ke ratsa ƙarar gini a wurin mai gano $\mathbf{x}$ da kusurwa $\theta$, kuma $ds$ shine ɓangaren layi. Ana dawo da samfurin 3D ta amfani da tsinkayar baya mai tacewa ko algorithms masu maimaitawa:

$\hat{\rho}(\mathbf{r}, t) = \mathcal{B}\{ \mathcal{F}^{-1}[ |\omega| \cdot \mathcal{F}(P_\theta(\mathbf{x}, t)) ] \}$

inda $\mathcal{F}$ ke nufin canjin Fourier kuma $\mathcal{B}$ shine ma'aikacin tsinkayar baya. Bangaren lokaci $t$ yana ba da damar sa ido na 4D (3D+lokaci).

3. Sakamakon Gwaji & Bincike

3.1. Saitawa da Daidaitawa

Saitin gwaji ya haɗa da tsarin VAM na tomographic na yau da kullun (na'urar tsinkaya, kwalban jujjuyawa) tare da ƙarin tsarin yin hoto. Tushen haske mai yaduwa ya haskaka kwalban, kuma kyamara ɗaya ko fiye sun ɗauki hasken da aka watsa. An daidaita tsarin ta amfani da hotunan siffa da aka sani don kafa alaƙar tsakanin ƙarfin watsawa da ƙarar da aka warke.

3.2. Daidaito da Ma'aunin Aiki

Sakamako na farko shine nunin daidaiton girma ƙasa da 1% don siffar da aka auna a-cikin wuri idan aka kwatanta da ɓangaren da aka buga na ƙarshe da samfurin CAD na asali. Don bugun ma'auni (misali, lattice mai sarƙaƙiya ko ɓangaren inji), an ba da rahoton kuskuren tushen-matsakaici-murabba'i (RMSE) tsakanin sake gina a-cikin wuri da sikanin micro-CT na waje ya kasance ƙasa da 1% na girman sifa na abu (misali, ~50 µm kuskure akan ɓangaren 5 mm).

Ma'aunin Aiki Mai Muhimmanci

Daidaiton Girma: < 1% na girman abu

Jinkirin Aunawa: Kusa da lokacin gaskiya (haɗe da saurin bugu)

Nau'in Bayanai: Bayanai na ƙididdiga na 3D + lokaci (4D) volumetric

3.3. Ƙarfin Gano Kurakurai

Tsarin ya yi nasarar gano kurakuran bugu yayin da suke faruwa. Misali, karkace kamar ramuka da ba a so, karkatattun siffofi saboda raguwar haske, ko rashin cikakken warkewa a yankunan da ba a tallafa ba an kwatanta su a cikin taswirar yawan watsawa da aka sake gina. An nuna wannan ta hanyar gabatar da kurakurai da gangan (misali, adashin daidaiton adadin haske) da nuna sakamakon tsarin binciken girma yana nuna bambanci da siffar da aka yi niyya.

Bayanin Ginshiƙi: Jerin lokaci na hotunan da aka sake gina na 3D zai nuna girma na abu. Ginshiƙin kwatancen zai zana bayanin layin samfurin CAD da aka yi niyya da bayanin da aka auna a-cikin wuri da bayanin sikanin CT na waje, yana nuna kusanci tsakanin duka ukun, tare da bayanan a-cikin wurin suna ɗaukar ƙarfin tsarin.

4. Tsarin Bincike & Nazarin Lamari

Tsarin don Alaƙar Tsari-Kaddara A-cikin Wurin: Wannan fasaha tana ba da damar sabon tsarin bincike: haɗa kai tsaye sigogin tsari (adadin haske a kowane kusurwa, saurin juyawa) tare da sakamakon geometric na lokacin gaskiya. Nazarin lamari na zahiri ya ƙunshi buga wani ɓangare tare da sifofi masu ƙalubale da aka sani (misali, fil ɗin ƙira, bangon siriri).

Shigarwa: Samfurin CAD da aka yi niyya da tsarin tsinkayar tomographic da aka tsara.
Sa ido akan Tsari: Tsarin a-cikin wuri yana sake gina ainihin ƙarar watsawa $V_{actual}(t)$.
Kwatanta: A cikin software, ana ci gaba da kwatanta $V_{actual}(t)$ da "mafi kyau" na ƙarar watsawa $V_{ideal}(t)$ da aka samo daga sanannen ƙofar ƙanƙara da adadin hasken da aka yi amfani da shi.
Zanen Karkacewa: Ana samar da taswirar bambanci $\Delta V(t) = V_{actual}(t) - V_{ideal}(t)$. Ƙimar tabbatacce tana nuna warkewa mai yawa/kumburi; ƙimar mara kyau tana nuna rashin warkewa/ramuka.
Binciken Tushen Dalili: Ana iya gano tsarin sararin samaniya a cikin $\Delta V$ zuwa takamaiman kusurwoyin tsinkaya ko matakan adadin haske, gano ainihin dalilin lahani. Wannan ya fi na binciken bayan aiki, inda haɗa lahani na ƙarshe da takamaiman lokaci a cikin tsari ba zai yiwu ba.

Wannan tsarin yana motsa sarrafa inganci daga binciken bayan samarwa mai wucewa, zuwa kayan aikin bincike mai aiki wanda aka haɗa cikin madaukin ƙirƙira.

5. Babban Fahimta & Bincike Mai Mahimmanci

Babban Fahimta: Orth da sauransu ba kawai sun gina kayan aikin binciken girma mafi kyau ba; sun sake tsara madaukin martani na ƙirƙirar ƙari ta asali. Ta hanyar amfani da siginar ɓoyayye (canjin watsawa) wanda ke cikin tsarin photopolymerization kansa, sun cimma ainihin aunawa da ƙirƙira a lokaci guda. Wannan yana mai da VAM daga tsari mai sauri-amma-makaho zuwa mai bayyanawa, yana magance mafi girman rauni a cikin ƙirƙira mai sauri: jinkirin da ke tsakanin bugu da sanin ko ya yi aiki.

Kwararar Ma'ana: Ma'anar tana da kyau kuma ta fara da ilimin kimiyyar lissafi. Matsala: AM yana buƙatar aunawar siffa a-cikin wuri. Ƙuntatawa: Ba za ku iya sanya na'urar sikanin a cikin kwandon ba. Maganinsu: Kada ku ƙara na'urar sikanin; sanya tsarin bugu kansa ya zama na'urar sikanin. Watsawar da ƙanƙara ta haifar ba kura ba ce; fasali ce. Wannan yayi daidai da falsafar a wasu fagage, kamar amfani da ƙarfin horo na hanyar sadarwar jijiya don bincike, maimakon ƙara ƙarin sassan bincike. Kwararar fasaha—daga lura da zahiri (haɓakar watsawa) zuwa samfurin lissafi (sake gina tomographic na yawan watsawa) zuwa haɗin tsarin—ba ta da aibi.

Ƙarfi & Kurakurai: Ƙarfinsa shine haɗinsa mara tsagewa da babban daidaito. Yana buƙatar ƙarin kayan aikin ƙasa da ƙasa, yana amfani da hanyar gani da ta riga ta kasance. Daidaiton ƙasa da 1% yana da ban mamaki don hanyar a-cikin wuri. Duk da haka, kurakurai suna da mahimmanci kuma na yau da kullun na aikin majagaba. Na farko, an yi aure da wani abu na musamman. Shin zai yi aiki da duk photoresins? Resins masu cika, marasa gani, ko na farko na watsawa bazai nuna isasshen bambanci ba. Na biyu, yana auna "ƙarar da aka warke" ta hanyar yawan watsawa, ba topology na saman ba. Matsalolin ƙarewar saman ko daidaiton ma'auni na nunin haske tsakanin polymer da ruwan resin na iya zama marar ganuwa. Kayan aikin binciken volumetric ne, ba na saman ba. Na uku, kamar yadda marubutan suka nuna, bayanan lokacin gaskiya a halin yanzu don kallo ne, ba don sarrafa madauki ba tukuna. Mataki daga gano lahani a lokacin *t* zuwa lissafin da amfani da adadin gyara kafin bugu ya ƙare a *t+Δt* kalubale ce ta ka'idar sarrafawa da kayan aiki.

Fahimta Mai Aiki: Ga masu bincike, hanyar nan take ita ce gama gari na kayan aiki: ƙididdige bambancin watsawa a cikin sinadarai na resin. Ga masana'antu, fifiko shine kada su jira sarrafa madauki. Ainihin ƙimar kusa da lokaci tana cikin ci gaban tsari da cancanta. Wannan tsarin na iya rage lokacin da ake buƙata don inganta sigogin bugu don sabon resin ko siffa daga makonni zuwa kwanaki ta hanyar ba da martani na volumetric nan take akan kowane gwajin bugu. Masu ƙira yakamata su kalli wannan ba a matsayin tashar sarrafa inganci ta ƙarshe ba, amma a matsayin "tagwayen dijital" na ƙarshe na tsarin bugu—kayan aiki don cikar girke-girke, tabbatar da cewa lokacin da yake gudana a cikin samarwa, yana daidai a karon farko. Nassoshi ga tsarin dogon lokaci na sikanin micro-CT [15] harbi ne kai tsaye a kan binciken girma na gargajiya; wannan fasahar tana nufin sanya wannan matsalar ta zama tsohuwa don zagayowar ci gaba.

6. Aikace-aikace na Gaba & Jagorori

Bugun Daidaitawa na Madauki: Manufa ta ƙarshe ita ce gyara na lokacin gaskiya. Idan an gano karkacewa a tsakiyar bugu, tsarin zai iya daidaita tsarin haske na gaba don ramawa—misali, ƙara adadin haske zuwa yankin da ba a warke ba ko rage shi don hana warkewa mai yawa.
Sa ido akan Bugun Kayan Aiki da Aiki: Tsawaita ƙa'idar don sa ido akan rarraba kayan daban-daban (misali, ta hanyar watsawa mai dogaro da tsawon zango) ko masu cika aiki (misali, nanotubes na carbon) yayin bugu.
Haɗawa da Koyon Injin: Bayanan 4D (3D+lokaci) da aka samar suna da kyau don horar da samfuran ML don hasashen gazawar bugu, inganta ƙira mara tallafi don VAM, ko rarraba nau'ikan lahani ta atomatik.
Daidaituwa da Takaddun shaida: A cikin masana'antu masu ƙa'ida (jirgin sama, likita), wannan na iya samar da rikodin dijital marar ƙirƙira na ainihin siffar ciki ga kowane ɓangare, mai mahimmanci don takaddun shaida.
Bayan VAM: Babban ra'ayi—amfani da siginar tsari na asali don binciken girma—zai iya ƙarfafa irin wannan hanyoyin a wasu nau'ikan AM, kamar sa ido kan fitar da zafi a cikin narkar da gadon foda ko sa hannun sauti a cikin fitar da kayan aiki.

7. Nassoshi

Kelly, B. E., et al. "Volumetric additive manufacturing via tomographic reconstruction." Science 363.6431 (2019): 1075-1079.
Loterie, D., et al. "High-resolution tomographic volumetric additive manufacturing." Nature Communications 11.1 (2020): 852.
Shusteff, M., et al. "One-step volumetric additive manufacturing of complex polymer structures." Science Advances 3.12 (2017): eaao5496.
Webber, D., & Paquet, C. "Advances in Volumetric 3D Printing." National Research Council Canada Technical Reports (2022).
Gibson, I., et al. Additive Manufacturing Technologies: 3D Printing, Rapid Prototyping, and Direct Digital Manufacturing. 3rd ed., Springer, 2021. (Don mahallin kalubalen binciken girma na gargajiya na AM).
ISO/ASTM 52902:2023. "Additive manufacturing — Test artifacts — Geometric capability assessment of additive manufacturing systems." (Ma'auni mai dacewa don tantance daidaito).
Zhu, J., et al. "Real-time monitoring and control in additive manufacturing: a review." Journal of Manufacturing Systems 68 (2023): 276-301. (Don faɗin mahallin sa ido a-cikin wuri).
Wang, C., et al. "Deep learning for real-time 3D reconstruction in additive manufacturing: A review." Virtual and Physical Prototyping 18.1 (2023): e2167456. (Shugabanci na gaba mai alaƙa da ML).
