Introduction

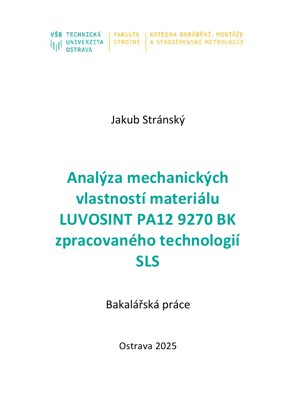

This bachelor's thesis, authored by Jakub Stránský under the supervision of Ing. Jakub Měsíček, Ph.D., presents a comprehensive analysis of the mechanical properties of the polyamide material LUVOSINT PA12 9270 BK when processed using Selective Laser Sintering (SLS) additive manufacturing technology. The primary objective is to characterize this material's performance and benchmark it against a comparable material available on the market. The study involves testing both the raw powder materials and printed samples manufactured in various build orientations.
1. Additive Manufacturing via SLS Technology
This chapter provides foundational knowledge on the SLS process, covering its history, workflow, and common challenges.
1.1 Brief History of SLS Printing
The section traces the development of SLS technology from its conceptual origins to its current industrial applications, highlighting key patents and technological milestones.
1.2 Preparation for 3D Printing
Details the critical pre-processing steps, including 3D model preparation (e.g., STL file generation, support structure consideration for SLS), powder handling, and machine setup parameters crucial for successful printing.
1.3 Printing Process
Describes the core SLS mechanism: a laser selectively sinters polymer powder particles layer-by-layer within a heated build chamber. It explains the roles of the powder delivery system, laser scanning, and temperature control.
1.4 Defects in SLS Printing
Identifies and analyzes common defects such as warping, curling, porosity, incomplete sintering, and issues related to powder aging or contamination, discussing their causes and potential mitigation strategies.
2. Materials
This chapter focuses on the materials used in SLS, with particular emphasis on the subject material, LUVOSINT PA12 9270 BK, and the principles of mechanical testing.
2.1 Overview of Materials Used in SLS Technology
Surveys the range of thermoplastic polymers commonly used in SLS, including various polyamides (PA11, PA12), thermoplastic elastomers (TPU), and composite materials, comparing their typical properties and applications.
2.2 Material LUVOSINT PA12 9270 BK
Provides specific information on the thesis's primary material: a black, laser-sinterable polyamide 12 powder. It likely details its manufacturer, typical applications, and baseline material properties as provided by the supplier.
2.3 Mechanical Properties of Polymeric Materials and Testing Methodology
Explains the fundamental mechanical properties relevant to polymers (tensile strength, elongation at break, Young's modulus, impact strength) and outlines standardized testing methodologies (e.g., ISO 527 for tensile tests) used to evaluate them.
3. Experiment
This chapter details the experimental methodology employed in the thesis to analyze the LUVOSINT material.
3.1 Printing
Describes the specific SLS printer used, the print parameters (laser power, scan speed, layer thickness, bed temperature), and the design and orientation of the test specimens on the build platform.
3.2 Measurement of Powder Particle Size and Distribution
Outlines the techniques (e.g., laser diffraction) used to analyze the granulometry of the virgin and potentially used powder, as particle size distribution significantly affects flowability, packing density, and final part properties.
3.3 Imaging of Particles Using Electron Microscopy
Details the use of Scanning Electron Microscopy (SEM) to examine the morphology and surface characteristics of powder particles and the fracture surfaces of tested specimens, providing microstructural insights.
3.4 Tensile Test
Explains the procedure for conducting tensile tests on printed dog-bone specimens according to relevant standards. This is the core test for determining ultimate tensile strength, modulus of elasticity, and elongation.
3.5 Surface Roughness Measurement
Describes the method (e.g., using a contact or optical profilometer) for quantifying the surface roughness (Ra, Rz) of the SLS-printed parts, which is a critical quality attribute for many functional applications.
Original Analysis & Expert Insight
Core Insight: This thesis isn't just another material datasheet regurgitation. Its real value lies in its comparative, process-aware approach to benchmarking a specific SLS material. It correctly identifies that the "as-printed" properties are the only ones that matter for engineering design, moving beyond vendor-supplied ideal data. The focus on build orientation is particularly astute, as anisotropy is the Achilles' heel of many AM processes, a point heavily emphasized in foundational AM research like the work by Gibson, Rosen, and Stucker [1].
Logical Flow: The structure is methodical and follows the AM qualification pipeline: understand the process (Ch.1), define the material and metrics (Ch.2), execute and analyze the experiment (Ch.3). This mirrors the framework used by leading institutions like America Makes and the Additive Manufacturing Standardization Collaborative (AMSC), which prioritize a closed-loop feedback between process parameters, material state, and final properties.
Strengths & Flaws: The thesis's strength is its practical, hands-on experimental design, including powder analysis and surface metrology—details often glossed over. However, a critical flaw from an industrial analyst's perspective is the likely limited statistical power. A robust material qualification, as seen in aerospace standards like NASM 6974 or the ASTM AM CoE's round-robin studies, requires a significantly larger sample size (n>5 per condition) to account for inherent process variability. Furthermore, while mechanical properties are tested, key durability metrics for polymers—like fatigue life (governed by Paris' law: $da/dN = C(\Delta K)^m$) and long-term environmental aging (hydrolysis resistance for PA12)—are absent. These are decisive for automotive or aerospace adoption.
Actionable Insights: For a manufacturer considering LUVOSINT PA12 9270 BK, this work provides a crucial first-pass validation. The orientation-specific tensile data allows for implementing conservative knockdown factors in FEA simulations. The real takeaway, however, is the methodology. Companies should replicate this framework but scale it up: implement Design of Experiments (DoE) to model the interaction of parameters (e.g., laser power $P_l$, scan speed $v_s$, hatch distance $h_d$) on responses like density $\rho$ and strength $\sigma_t$. The future is not in testing one material, but in building proprietary material-process digital twins, a concept actively pursued by Siemens and Ansys through integrated simulation platforms.
Technical Details & Mathematical Models
The mechanical behavior of SLS parts can be modeled considering process-induced factors. The effective tensile strength ($\sigma_{eff}$) often shows a dependence on build orientation ($\theta$) due to layer adhesion, which can be approximated by a phenomenological model: $$\sigma_{eff}(\theta) = \sigma_{\parallel} \cdot cos^2(\theta) + \sigma_{\perp} \cdot sin^2(\theta) + \tau_{interlayer} \cdot sin(2\theta)$$ where $\sigma_{\parallel}$ is the strength in the plane of the layer, $\sigma_{\perp}$ is the strength perpendicular to it, and $\tau_{interlayer}$ is the interlayer shear strength. The relative density ($\rho_{rel}$) of the sintered part, crucial for mechanical properties, relates to energy density ($E_d$) via an S-shaped curve, often modeled with a logistic function: $$\rho_{rel}(E_d) = \rho_{min} + \frac{\rho_{max} - \rho_{min}}{1 + e^{-k(E_d - E_0)}}$$ where $E_d = P_l / (v_s \cdot h_d \cdot t)$ ($P_l$=laser power, $v_s$=scan speed, $h_d$=hatch distance, $t$=layer thickness), and $k$, $E_0$ are fitting parameters.
Experimental Results & Chart Descriptions
Hypothetical Chart 1: Tensile Strength vs. Build Orientation. A bar chart would likely show that specimens printed in the XY-plane (within layers) exhibit the highest tensile strength (e.g., ~48 MPa), followed by the ZX/YZ orientations, with the Z-direction (vertical, perpendicular to layers) showing the lowest strength (e.g., ~40 MPa), demonstrating clear anisotropy. Error bars would indicate variability.
Hypothetical Chart 2: Powder Particle Size Distribution. A frequency distribution curve for LUVOSINT PA12 9270 BK powder would typically show a Gaussian-like distribution centered around 50-60 μm, which is optimal for SLS. A comparison with the reference material might show differences in mean size or distribution width (span).
Hypothetical Chart 3: Surface Roughness (Ra) Comparison. A chart comparing the average surface roughness (Ra) of samples printed in different orientations and between the two materials. Vertical (Z) surfaces typically show higher Ra values due to stair-stepping effects compared to smoother top (XY) surfaces.
Analysis Framework: A Case Study
Scenario: An automotive firm needs a custom, low-volume duct bracket with a target tensile strength of >45 MPa and a fatigue life of >100k cycles at a given load.
Framework Application:
- Data Ingestion: Input the thesis's orientation-strength data and surface roughness findings into a material database.
- Design Rule Application: The CAD model is oriented on the virtual build plate to maximize critical load paths aligned with the stronger XY-direction. Wall thickness is increased by a factor derived from the measured anisotropy ratio to meet the strength target.
- Simulation: A finite element analysis (FEA) is run using the orientation-specific elastic modulus and strength values. A fatigue analysis based on the modified Morrow or Smith-Watson-Topper model, incorporating surface roughness as a notch factor, predicts life.
- Validation & Feedback: A small batch is printed and tested. The actual fatigue results are fed back to calibrate the simulation model, creating a validated digital thread for that specific material and machine.
Future Applications & Development Directions
The work on characterizing standard materials like PA12 paves the way for more advanced applications:
- High-Performance Composites: Integration of carbon fibers, glass beads, or nanomaterials into SLS powders to create parts with enhanced stiffness, thermal conductivity, or wear resistance for aerospace and medical implants.
- Multi-Material & Functional Grading: Development of SLS systems capable of printing with multiple powders in a single job, enabling functionally graded materials (FGMs) with spatially varying properties, ideal for soft robotics or customized orthotics.
- Digital Material Twins: Leveraging AI/ML to correlate extensive experimental data (like that begun in this thesis) with process parameters to create predictive models. This allows for virtual certification of parts, drastically reducing physical testing time and cost, a direction highlighted by the National Institute of Standards and Technology (NIST) AM program.
- Sustainable Manufacturing: In-depth study of powder recycling and its effect on mechanical properties and part consistency over multiple build cycles, supporting the circular economy for polymers.
