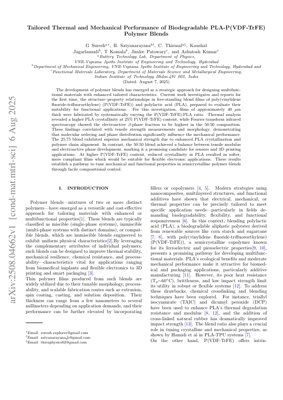

Tailored Thermal and Mechanical Performance of Biodegradable PLA-P(VDF-TrFE) Polymer Blends

1. Introduction

Polymer blends represent a strategic and cost-effective methodology for engineering materials with multifunctional properties. This work investigates, for the first time, the structure-property relationships in free-standing blend films of poly(vinylidene fluoride-trifluoroethylene) (P(VDF-TrFE)) and polylactic acid (PLA). The primary objective is to evaluate their suitability for advanced functional applications by systematically varying the blend ratio. PLA offers biodegradability and renewability, while P(VDF-TrFE) contributes ferroelectric and piezoelectric properties. The synergy aims to overcome individual limitations, such as PLA's brittleness and poor thermal resistance, paving the way for tunable materials in sensors, flexible electronics, and 3D printing.

2. Materials and Methods

2.1 Materials and Film Preparation

Blend films with a thickness of approximately 40 µm were fabricated using a solution casting method. The P(VDF-TrFE) to PLA ratio was systematically varied to create different compositions (e.g., 25:75, 50:50, 75:25). Both polymers were dissolved in a common solvent, cast onto glass substrates, and allowed to dry under controlled conditions to form free-standing films.

2.2 Characterization Techniques

A comprehensive suite of characterization tools was employed:

• Differential Scanning Calorimetry (DSC): To analyze thermal transitions, crystallinity, and melting behavior.
• Fourier-Transform Infrared Spectroscopy (FTIR): To identify functional groups and quantify the electroactive β-phase fraction in P(VDF-TrFE).
• Tensile Testing: To measure mechanical properties like tensile strength, modulus, and elongation at break.
• Scanning Electron Microscopy (SEM): To examine the surface morphology and phase distribution within the blends.

3. Results and Discussion

3.1 Thermal Analysis (DSC)

DSC results revealed a complex interplay between blend composition and crystallinity. The crystallinity of PLA was found to be highest in the blend containing 25% P(VDF-TrFE). This suggests that a small amount of the ferroelectric copolymer may act as a nucleating agent for PLA, enhancing its ordered structure. Conversely, at higher P(VDF-TrFE) content (e.g., 75%), the crystallinity of PLA decreased, resulting in films with a more amorphous, compliant character.

3.2 Structural Analysis (FTIR)

FTIR spectroscopy was crucial for quantifying the electroactive β-phase content of P(VDF-TrFE), which is responsible for its piezoelectric properties. The analysis showed that the β-phase fraction reached its maximum in the 50:50 (P(VDF-TrFE):PLA) blend composition. This optimal ratio likely facilitates the molecular conformation necessary for the β-phase, indicating a balanced interaction between the two polymer chains that promotes electroactivity.

3.3 Mechanical Properties (Tensile Testing)

Tensile tests demonstrated a clear correlation between blend composition, morphology, and mechanical performance.

3.4 Morphological Analysis (SEM)

SEM images provided visual evidence of the phase distribution. Blends with better mechanical properties (like the 25:75 composition) showed a more uniform and finer dispersion of phases, suggesting better compatibility or interfacial adhesion. In contrast, compositions with poorer properties often exhibited larger, segregated domains, indicating phase separation.

4. Key Insights and Performance Summary

The study successfully establishes a pathway to tailor material properties through simple compositional control:

• For High Strength: A 25:75 P(VDF-TrFE):PLA blend maximizes PLA crystallinity and mechanical integrity.
• For Balanced Electroactivity & Stiffness: The 50:50 blend is the prime candidate, offering a compromise suitable for sensor and 3D printing applications.
• For High Flexibility/Compliance: Blends rich in P(VDF-TrFE) (e.g., 75:25) yield softer films, ideal for flexible electronics where mechanical durability is less critical than conformability.

The core finding is that molecular ordering and phase distribution are the primary levers controlling the final thermal, mechanical, and functional properties of these semicrystalline polymer blends.

5. Technical Details and Mathematical Framework

The crystallinity ($X_c$) of PLA in the blends was calculated from DSC data using the standard formula:

$X_c(\%) = \frac{\Delta H_m}{\Delta H_m^0 \times w} \times 100$

Where $\Delta H_m$ is the measured melting enthalpy of the blend sample, $\Delta H_m^0$ is the theoretical melting enthalpy for 100% crystalline PLA (taken as 93 J/g), and $w$ is the weight fraction of PLA in the blend.

The fraction of the electroactive β-phase ($F(\beta)$) in P(VDF-TrFE) was determined from FTIR spectra using the Beer-Lambert law-based method:

$F(\beta) = \frac{A_\beta}{\frac{K_\beta}{K_\alpha} A_\alpha + A_\beta}$

Here, $A_\alpha$ and $A_\beta$ are the absorbance peaks at ~763 cm⁻¹ (α-phase) and ~840 cm⁻¹ (β-phase), respectively. $K_\alpha$ and $K_\beta$ are the absorption coefficients at these respective wavenumbers.

6. Experimental Results and Chart Descriptions

Figure 1: DSC Thermograms. A series of overlayed DSC heating curves showing distinct melting endotherms for PLA and P(VDF-TrFE). The peak temperature and area under the PLA melt endotherm visibly change with composition, directly illustrating the variation in PLA crystallinity discussed in section 3.1.

Figure 2: FTIR Spectra (500-1000 cm⁻¹ region). Stacked plots highlighting the absorption bands at ~763 cm⁻¹ (α-phase) and ~840 cm⁻¹ (β-phase). The relative intensity of the 840 cm⁻¹ peak is most pronounced for the 50:50 blend, providing graphical proof of the maximum β-phase content.

Figure 3: Stress-Strain Curves. A family of curves for different blend ratios. The 25:75 blend shows the highest ultimate tensile strength (highest point on the Y-axis) but lower elongation. The 75:25 blend shows a much lower strength but greater extensibility, confirming the trade-off between strength and compliance.

Figure 4: SEM Micrographs. Comparative images at 10k magnification. The 25:75 blend displays a relatively smooth, homogeneous surface. The 50:50 blend shows a two-phase morphology with interconnected domains. The 75:25 blend exhibits larger, more distinct phase-separated domains.

7. Analysis Framework: A Case Study

Scenario: A startup aims to develop a biodegradable pressure sensor for wearable health monitoring. The sensor requires moderate flexibility, good piezoelectric response (β-phase), and sufficient mechanical durability.

Framework Application:

1. Define Target Property Matrix: Primary: High $F(\beta)$ (>0.7). Secondary: Tensile modulus between 1-2 GPa, elongation >20%.
2. Map to Experimental Data: Cross-reference with study results. The 50:50 blend shows peak $F(\beta)$ and a balanced modulus, making it the leading candidate.
3. Prototype & Validate: Fabricate sensor prototypes using the 50:50 blend film. Test piezoelectric output (d₃₃ coefficient) under controlled pressure and cycle for durability.
4. Iterate: If flexibility is insufficient, slightly shift composition towards higher P(VDF-TrFE) (e.g., 60:40), accepting a minor trade-off in $F(\beta)$ for improved compliance, guided by the established structure-property trend.

This systematic approach, rooted in the published data, transforms empirical findings into an actionable design tool.

8. Future Applications and Development Directions

The tunability of PLA-P(VDF-TrFE) blends opens doors to several advanced applications:

• 4D Printing with Functional Polymers: Using these blends as feedstock for Fused Deposition Modeling (FDM) to print objects that can sense pressure or deform electrically (self-sensing structures).
• Transient/Bioresorbable Electronics: Leveraging PLA's biodegradability for implantable medical sensors or environmental monitors that dissolve after service life.
• Energy Harvesting Skins: Developing large-area, flexible films for scavenging biomechanical energy (from movement) to power small wearable devices.
• Smart Packaging: Integrating piezoelectric sensing into biodegradable packaging to monitor freshness or tampering.

Future Research: Key directions include: 1) Investigating the role of compatibilizers to further refine morphology and property windows; 2) Exploring ternary blends with conductive fillers (e.g., carbon nanotubes) for enhanced electrical properties; 3) Long-term stability studies under real-world environmental conditions.

9. References

1. Utracki, L. A. (2002). Polymer Blends Handbook. Kluwer Academic Publishers.
2. Hamidi, Y. K., et al. (2022). Structure-property relationships in PLA-TPU blends. Polymer Testing, 114, 107685.
3. Lovinger, A. J. (1983). Ferroelectric polymers. Science, 220(4602), 1115-1121. (Seminal work on P(VDF) polymers).
4. Nature Portfolio. (2023). Biodegradable Electronics. [Online] Available at: https://www.nature.com/collections/biegdjgjcd (For context on application trends).
5. ASTM International. Standard Test Method for Tensile Properties of Plastics (D638). (Relevant standard for mechanical testing methodology).

10. Original Analysis: Industry Perspective

Core Insight: This research isn't just another polymer blend study; it's a pragmatic blueprint for property-by-design in sustainable functional materials. The authors have effectively decoded the composition-property map for PLA-P(VDF-TrFE), transforming it from a black box into a tunable dial. The real breakthrough is identifying two distinct "sweet spots": one (25:75) for structural integrity and another (50:50) for functional performance, proving you don't always have to compromise.

Logical Flow & Strengths: The experimental logic is robust—vary one key parameter (composition) and track its multidimensional impact (thermal, structural, mechanical). The correlation between FTIR's β-phase quantification and mechanical data is particularly compelling, moving beyond mere observation to mechanistic insight. The strength lies in its clarity and immediate applicability. Unlike more esoteric nano-composite studies, these are solution-processable films with a straightforward fabrication path, significantly lowering the barrier to prototyping and scale-up, akin to the pragmatic approach seen in the development of accessible machine learning models like those built on TensorFlow's foundational principles.

Flaws & Gaps: However, the analysis stops short of being truly predictive. It provides a correlation map, not a first-principles model. Key questions remain unanswered: What is the precise interfacial adhesion energy? How does the crystallinity kinetics change during processing? The durability—critical for any real application—is glaringly absent. How does piezoelectric performance decay over 10,000 cycles? Without this, it's a promising material search, not a product-ready solution. Furthermore, while citing general blend literature, it misses a direct comparison to state-of-the-art biodegradable piezoelectrics, such as recent work on peptide-based or cellulose-derived systems published in Advanced Materials.

Actionable Insights: For an R&D manager, this paper is a starting pistol, not the finish line. The immediate action is to prototype the 50:50 blend for sensor concepts and the 75:25 blend for flexible substrates. The next critical investment must be in reliability testing (thermal cycling, humidity aging) and processing optimization (extrusion parameters for mass production). Partnering with a 3D printing firm to test these as novel filaments could accelerate commercialization. Ultimately, this work's greatest value is in providing a validated, composition-based knob to turn—a rare and practical gift in materials engineering.
