Predicting Powder Flowability for Selective Laser Sintering: A Machine Learning Approach

1. Introduction & Overview

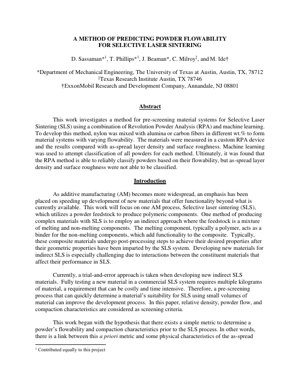

This research paper, authored by Sassaman, Phillips, Beaman, Milroy, and Ide, addresses a critical bottleneck in Selective Laser Sintering (SLS) additive manufacturing: the costly and time-intensive trial-and-error process for developing new powder feedstock materials. The core objective is to establish a reliable pre-screening method to predict a powder's flowability and compaction characteristics—key factors for successful layer spreading in SLS—using minimal material quantities.

The study hypothesizes a link between an a priori metric of powder behavior and the physical characteristics of the as-spread powder layer in an SLS machine. It investigates this link by testing nylon powders mixed with varying weight percentages of alumina or carbon fibers, employing a custom Revolution Powder Analysis (RPA) device, and comparing results with traditional metrics like as-spread layer density and surface roughness. Machine learning is then applied to classify powders based on their predicted manufacturability.

2. Methodology & Experimental Setup

2.1 Material Systems Preparation

The research focused on an "indirect SLS" approach for creating composite materials. Nylon (the melting/binding polymer) was mechanically mixed with non-melting functional components:

• Alumina (Al₂O₃): Added in different weight percentages to vary flow properties.
• Carbon Fibers: Added in different weight percentages to create another set of flowability variants.

This created a controlled dataset of material systems with intentionally varied flowability for analysis.

2.2 Revolution Powder Analysis (RPA)

A custom RPA device was used to measure powder behavior under dynamic conditions simulating the SLS recoating process. The RPA likely measures parameters related to:

• Cohesive strength
• Flow energy
• Conditioned bulk density
• Specific energy (energy per unit mass to initiate flow)

These dynamic measurements are contrasted with static powder properties and the outcome metrics from the SLS process itself.

2.3 Machine Learning Classification

Machine learning algorithms were trained to classify powders into categories (e.g., "good flowability," "poor flowability") based on:

1. Input Features: Data from the RPA device.
2. Alternative Input Features: Measured as-spread layer density and surface roughness from actual SLS trials.

The performance of classifiers using these different input sets was compared to determine the most predictive pre-screening method.

3. Results & Analysis

3.1 RPA vs. Traditional Metrics

The study yielded a clear, significant result:

• RPA Data was Predictive: Machine learning models using RPA-derived features were able to reliably classify powders based on their flowability characteristics.
• Traditional SLS Metrics were Not Predictive: Models using as-spread layer density and surface roughness failed to achieve reliable classification. This suggests these common post-spread measurements are poor proxies for the fundamental powder flow behavior needed for consistent spreading.

3.2 Classification Performance

While the paper does not specify the exact algorithm (e.g., SVM, Random Forest, Neural Network), the successful classification using RPA data implies the extracted features (like flow energy, cohesion) effectively captured the powder's dynamic behavior relevant to SLS. The failure of layer-based metrics highlights the complexity of the SLS process, where final layer quality is influenced by many factors beyond initial flowability, such as laser-powder interaction and thermal effects.

4. Technical Details & Mathematical Framework

The core of the RPA method likely involves quantifying powder flow energy. A fundamental concept in powder rheology is the relationship between shear stress ($\tau$) and normal stress ($\sigma$) described by the Mohr-Coulomb failure criterion:

$$\tau = c + \sigma \tan(\phi)$$

Where $c$ is the cohesion (inter-particle attractive forces) and $\phi$ is the angle of internal friction. RPA devices measure the energy required to overcome this cohesion and friction under specific flow conditions. The "specific energy" ($E_{sp}$) for powder flow can be conceptualized as:

$$E_{sp} = \frac{\int F(v) \, dv}{m}$$

where $F(v)$ is the force profile as a function of blade or impeller velocity during the test, and $m$ is the powder mass. A higher $E_{sp}$ indicates poorer flowability. Machine learning models would use such derived metrics as input features $\mathbf{x} = [E_{sp}, c, \phi, ...]$ to learn a classification function $f(\mathbf{x}) \rightarrow \{ \text{Good, Poor} \}$.

5. Analysis Framework: A Non-Code Case Study

Scenario: A materials startup wants to develop a new SLS powder with copper particles for thermal conductivity.

Framework Application:

1. Problem Definition: Will the nylon-copper blend spread evenly in an SLS machine?
2. Data Acquisition (Pre-Screening):
   • Prepare 5 small batches (50g each) with 1%, 3%, 5%, 7%, 10% copper by weight.
   • Run each batch through an RPA device (or similar powder rheometer) to obtain flow energy and cohesion data.
3. Prediction & Decision:
   • Input the RPA data into the pre-trained ML model from this research.
   • Model predicts: 1%, 3% mixes = "Good Flow"; 5% = "Marginal"; 7%, 10% = "Poor Flow."
   • Actionable Insight: The startup should proceed with full-scale SLS trials only for the 1-3% copper mixes, saving ~60% of development cost and time by avoiding poor candidates.
4. Validation Loop: After successful SLS builds with the 3% mix, add the real-world result back to the ML training dataset to improve future predictions.

6. Critical Analysis & Industry Perspective

Core Insight: This work successfully shifts the paradigm from observing outcomes (layer defects) to predicting causes (inherent powder flow dynamics). It correctly identifies that static or post-process measurements are inadequate for forecasting the complex, dynamic behavior of powders during SLS recoating. The real value isn't just in using ML, but in pairing it with the right physics-based input data—RPA metrics that actually correlate with flow mechanics.

Logical Flow & Strengths: The hypothesis is elegant and practical. The use of controlled material variants (nylon + alumina/carbon fibers) creates a clean test bed. The direct comparison between RPA and traditional metrics provides compelling, actionable evidence. This approach mirrors best practices in other ML-driven fields; just as computer vision breakthroughs like CycleGAN (Zhu et al., 2017) relied on carefully designed cycle-consistency losses to learn meaningful image translations, this work uses a carefully designed physical test (RPA) to generate meaningful features for manufacturing prediction.

Flaws & Gaps: The study's scope is its main limitation. It tests only one base polymer (nylon) with two filler types. Flowability in SLS is notoriously sensitive to particle size distribution, shape, and humidity—factors not fully explored here. The "custom RPA device" lacks standardization; results may not be directly comparable to commercial powder rheometers (e.g., Freeman FT4). The ML model is treated as a black box; understanding which RPA features are most important (e.g., cohesion vs. aerated flow energy) would provide deeper material science insight.

Actionable Insights for Practitioners:

1. Stop Guessing with Layer Photos: Investing in dynamic powder testing (even a basic shear cell) is more valuable than analyzing images of spread layers for new material development.
2. Build Your Proprietary Dataset: Companies should start logging RPA data for every powder batch alongside SLS build success/failure rates. This proprietary dataset will become a core competitive asset.
3. Push for Standardization: Advocate for ASTM or ISO standards for SLS powder flowability testing based on dynamic methods like RPA, moving beyond angle of repose and Hall flowmeters.

7. Future Applications & Research Directions

• Multi-Material & Graded SLS: This pre-screening framework is essential for developing reliable powders for multi-material SLS printing, where different flow behaviors in adjacent powder beds must be precisely managed.
• Closed-Loop Process Control: Future SLS machines could integrate inline powder rheometers. Real-time RPA data could feed into adaptive ML models that adjust recoater speed, layer thickness, or even laser parameters on-the-fly to compensate for batch-to-batch powder variation.
• Expanded Material Space: Applying this methodology to metals (for Laser Powder Bed Fusion), ceramics, and polymers beyond nylon. Research should focus on universal, material-agnostic flowability descriptors.
• Hybrid Modeling: Combining ML with physics-based discrete element method (DEM) simulations. Use ML to rapidly predict flow from RPA data, and use DEM to simulate the actual spreading process for detailed insight, as explored in studies referenced by the U.S. National Institute of Standards and Technology (NIST) Additive Manufacturing Metrology Testbed (AMMT) program.
• Digital Powder Twins: Creating comprehensive digital profiles for powders, integrating chemical, physical, and dynamic flow properties, enabling virtual "what-if" scenarios for new material design.

8. References

1. Prescott, J. K., & Barnum, R. A. (2000). On powder flowability. Pharmaceutical Technology, 24(10), 60-84.
2. Amado, A., Schmid, M., & Wegener, K. (2011). Characterization of polymer powders for selective laser sintering. Annual International Solid Freeform Fabrication Symposium, 177-186.
3. Zhu, J. Y., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired image-to-image translation using cycle-consistent adversarial networks. Proceedings of the IEEE international conference on computer vision, 2223-2232.
4. Freeman, R. (2007). Measuring the flow properties of consolidated, conditioned and aerated powders — A comparative study using a powder rheometer and a rotational shear cell. Powder Technology, 174(1-2), 25-33.
5. National Institute of Standards and Technology (NIST). (2023). Additive Manufacturing Metrology Testbed (AMMT). Retrieved from https://www.nist.gov/programs-projects/additive-manufacturing-metrology-testbed-ammt
6. Slotwinski, J. A., Garboczi, E. J., & Hebenstreit, K. M. (2014). Porosity measurements and analysis for metal additive manufacturing process control. Journal of Research of the National Institute of Standards and Technology, 119, 494-528.
