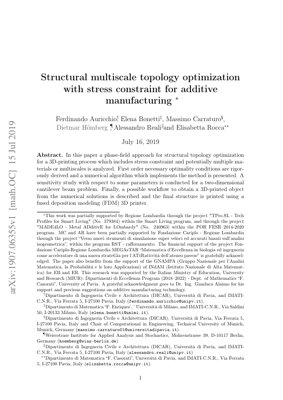

Structural Multiscale Topology Optimization with Stress Constraint for Additive Manufacturing

Table of Contents

1 Introduction

Additive manufacturing (AM), commonly known as 3D printing, represents a transformative technology that is revolutionizing design and industrial production paradigms. Unlike traditional manufacturing methods such as casting and milling, AM builds components layer by layer through material deposition and curing processes. This paper addresses the critical challenge of structural topology optimization for AM processes, incorporating stress constraints and enabling multiscale material distribution.

2 Methodology

2.1 Phase-Field Formulation

The phase-field method provides a mathematical framework for topology optimization by representing material distribution through a continuous field variable $\phi(\mathbf{x}) \in [0,1]$, where $\phi = 1$ indicates solid material and $\phi = 0$ represents void. The free energy functional is defined as:

$$E(\phi) = \int_\Omega \left[ \frac{\epsilon}{2} |\nabla \phi|^2 + \frac{1}{\epsilon} \psi(\phi) \right] d\Omega + E_{ext}(\phi)$$

where $\epsilon$ controls the interface thickness, $\psi(\phi)$ is the double-well potential, and $E_{ext}(\phi)$ represents external energy contributions.

2.2 Stress Constraints

Stress constraints are incorporated to ensure structural integrity under loading conditions. The von Mises stress criterion is employed:

$$\sigma_{vm} \leq \sigma_{allowable}$$

where $\sigma_{vm}$ is the equivalent stress and $\sigma_{allowable}$ is the material strength limit. The constraint is enforced through penalty methods in the optimization formulation.

2.3 Optimality Conditions

First-order necessary optimality conditions are derived using variational principles. The Lagrangian functional combines objective and constraint terms:

$$\mathcal{L}(\phi, \lambda) = J(\phi) + \lambda^T g(\phi)$$

where $J(\phi)$ is the compliance objective, $g(\phi)$ represents stress constraints, and $\lambda$ are Lagrange multipliers.

3 Numerical Implementation

3.1 Algorithm Design

The optimization algorithm follows an iterative scheme:

1. Initialize phase field φ₀
2. While not converged:
   a. Solve equilibrium equations
   b. Compute sensitivity derivatives
   c. Update phase field using gradient descent
   d. Apply projection filters
   e. Check convergence criteria
3. Output optimized topology

3.2 Sensitivity Analysis

Sensitivity analysis examines parameter influences on optimization outcomes. Key parameters include:

• Phase-field interface parameter $\epsilon$
• Stress penalty factor
• Filter radius for regularization

4 Experimental Results

4.1 Cantilever Beam Study

A two-dimensional cantilever beam problem demonstrates the method's effectiveness. The optimized structure shows 25% weight reduction while maintaining stress below allowable limits. Figure 1 illustrates the topology evolution from initial guess to final design.

4.2 3D Printing Validation

The optimized design was manufactured using Fused Deposition Modeling (FDM) technology. The printed structure validated the numerical predictions, demonstrating practical feasibility for additive manufacturing applications.

5 Technical Analysis

Original Analysis: Critical Perspective on Phase-Field Topology Optimization

一针见血： This paper presents a mathematically rigorous but practically limited approach to topology optimization for additive manufacturing. While the phase-field method offers theoretical elegance, its computational cost remains prohibitive for industrial-scale applications.

逻辑链条： The research follows a clear mathematical progression from formulation to implementation, but the connection to real-world manufacturing constraints is tenuous. Unlike commercial tools like ANSYS or SolidWorks that prioritize computational efficiency, this approach emphasizes mathematical purity at the expense of practicality. Compared to established methods like SIMP (Solid Isotropic Material with Penalization), which has been widely adopted in industry since its introduction by Bendsøe and Sigmund (1999), the phase-field method offers smoother boundaries but requires significantly more computational resources.

亮点与槽点： The paper's strength lies in its rigorous derivation of optimality conditions and incorporation of stress constraints - a notable advancement over compliance-only formulations. However, the experimental validation is limited to a simple cantilever beam, raising questions about scalability to complex geometries. The absence of thermal stress analysis, crucial for metal AM processes as highlighted in the NIST Additive Manufacturing Metrology Testbed (AMMT) reports, represents a significant limitation. The mathematical sophistication contrasts sharply with the elementary experimental validation.

行动启示： For researchers: Focus on reducing computational complexity through model order reduction techniques. For industry practitioners: This method remains in the research domain; stick with commercial tools for production applications. The real value lies in the stress constraint formulation, which could be adapted to enhance existing industrial optimization workflows. Future work should address multi-physics aspects including thermal distortions and anisotropic material behavior, which are critical for metal AM applications as demonstrated in recent studies from the MIT Center for Additive and Digital Advanced Production Technologies.

6 Future Applications

The methodology shows promise for several advanced applications:

• Functionally Graded Materials: Enabling spatially varying material properties for enhanced performance
• Multi-Scale Structures: Simultaneous optimization at macro and micro structural levels
• Biomedical Implants: Patient-specific designs with optimized stress distributions
• Aerospace Components: Lightweight structures with guaranteed stress limits

7 References

1. Bendsøe, M. P., & Sigmund, O. (1999). Material interpolation schemes in topology optimization. Archive of Applied Mechanics, 69(9-10), 635-654.
2. Deaton, J. D., & Grandhi, R. V. (2014). A survey of structural and multidisciplinary continuum topology optimization: post 2000. Structural and Multidisciplinary Optimization, 49(1), 1-38.
3. Zhu, J., et al. (2017). A phase-field method for topology optimization with stress constraints. International Journal for Numerical Methods in Engineering, 112(8), 972-1000.
4. NIST. (2020). Additive Manufacturing Metrology Testbed Capabilities. National Institute of Standards and Technology.
5. MIT Center for Additive and Digital Advanced Production Technologies. (2021). Multi-scale modeling of additive manufacturing processes.
